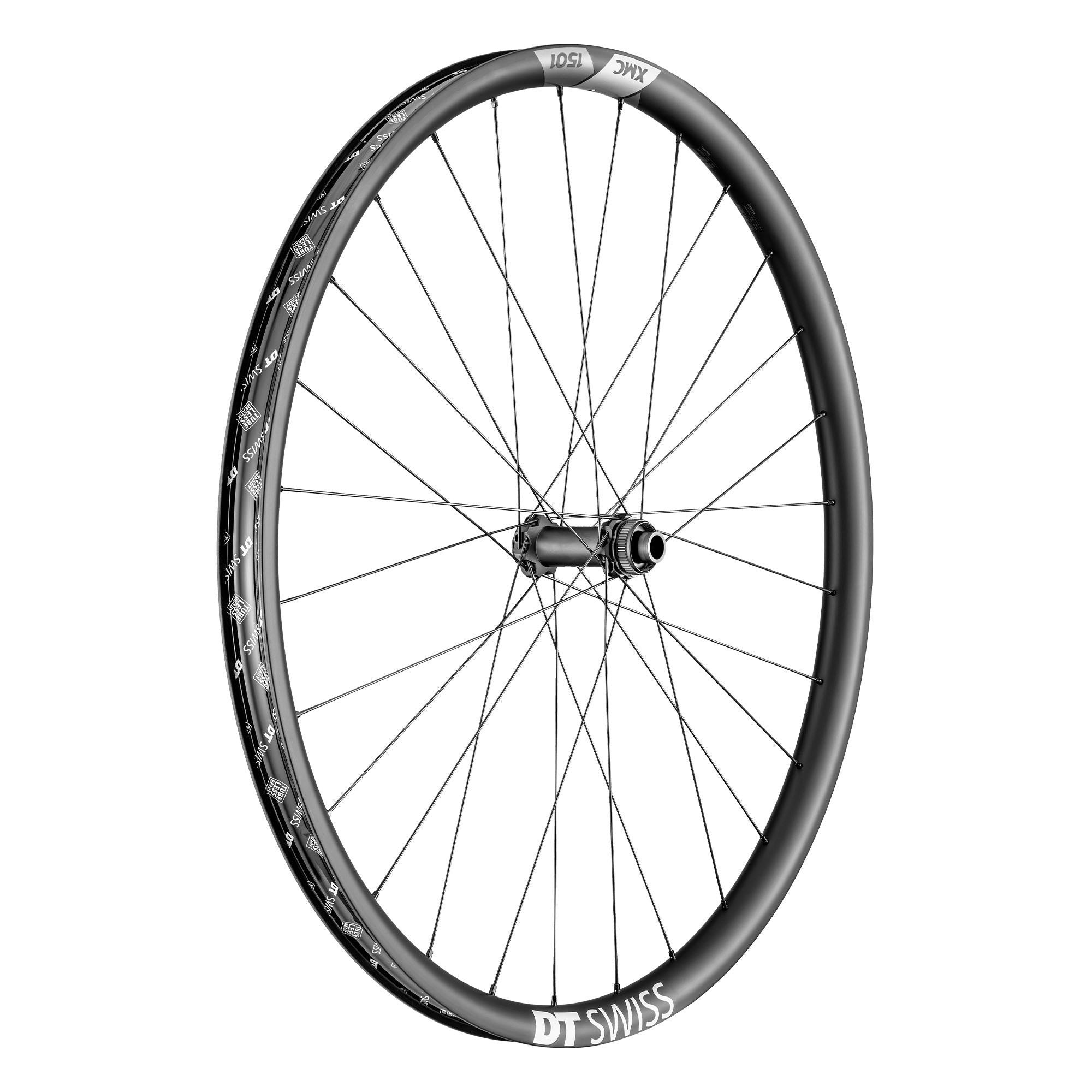

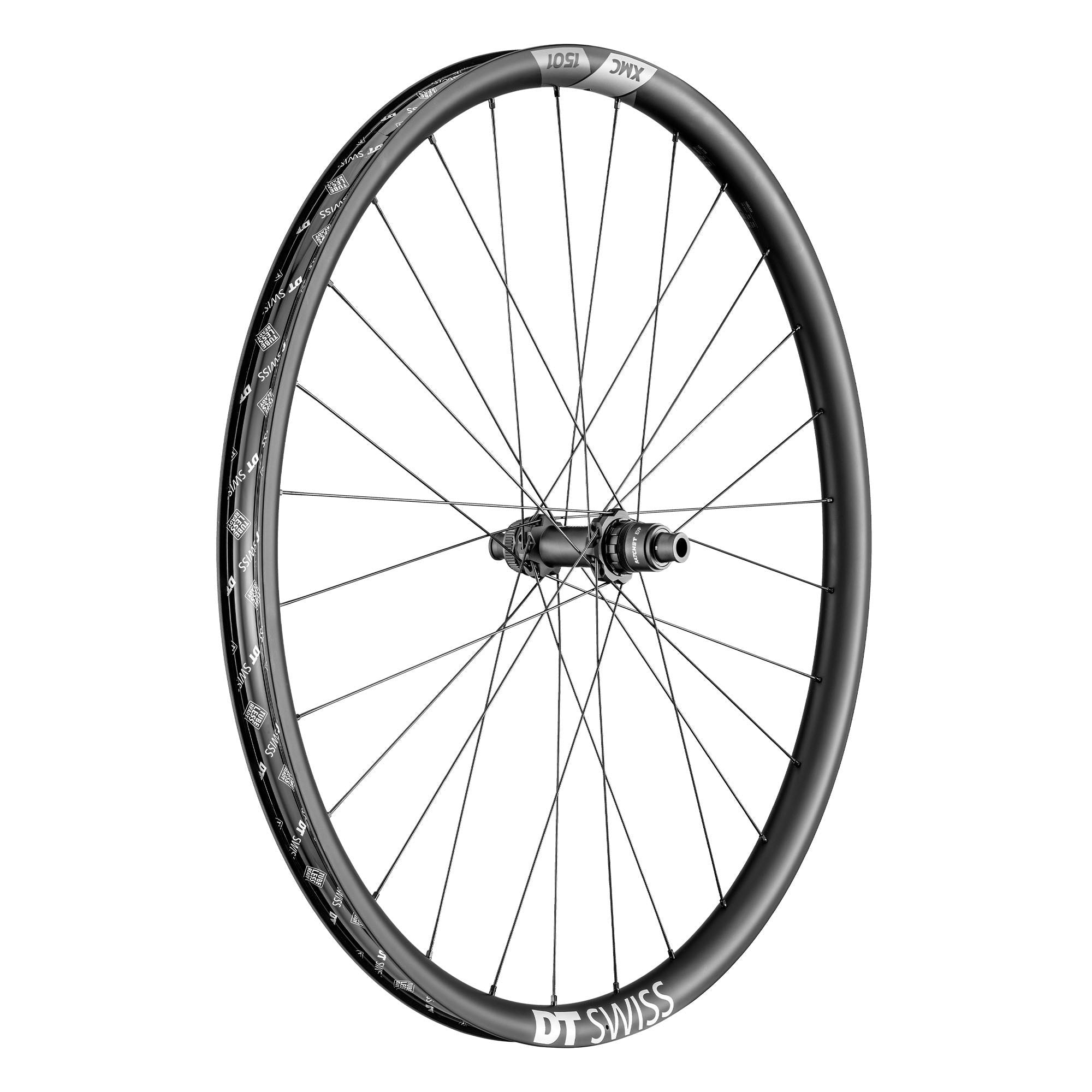

Our all rounder. A 240 hub combined with a carbon rim results in a durable and versatile package.
The low weight of the carbon rim, specially designed for all-mountain use, combined with the latest evolution of the 240 hub with RATCHET EXP freewheel, make the XMC 1501 SPLINE ONE wheels the perfect partner in crime for all kinds of mountain adventures. The 30mm inner width of the tubeless optimized carbon rim provides excellent support for the wide tubeless tire. Double-butted competition race spokes and the highest quality wheel construction round off our XMC 1501 SPLINE ONE wheels.
| REAR WHEEL | FRONT WHEEL | |
| GENERAL | ||
| NET WEIGHT | 827 g | 864 g | 738 g | 775 g |
| RECOMMENDED SYSTEM WEIGHT MAX. | 120 kg | 120 kg |
| ASTM CLASSIFICATION | 4 | 4 |
| RIM | ||
| MATERIAL | Carbon | Carbon |
| RIM JOINT | - | - |
| TIRE INTERFACE | Hookless tubeless TSS | Hookless tubeless TSS |
| VALVE HOLE | Presta | Presta |
| RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
| RIM HEIGHT | - | - |
| DECAL TYPE | Waterslide | Waterslide |
| INNER WIDTH | 30 mm | 30 mm |
| OUTER WIDTH | 36 mm | 36 mm |
| HUB | ||
| HUB TYPE | 240 | 240 |
| AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
| BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
| BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
| FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
| FREEHUB SYSTEM | Ratchet EXP 36 | - |
| SPOKES & NIPPLES | ||
| SPOKES LEFT | DT competition® race straightpull | DT competition® race straightpull |
| SPOKES RIGHT | DT competition® race straightpull | DT competition® race straightpull |
| SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
| NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| INCLUSIVE | ||
| Tubeless tape 32 mm | Tubeless tape 32 mm | |
| TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | |
| IS 6-bolt adapter MTB | IS 6-bolt adapter MTB | |
| Shim Micro Spline freehub kit | ||
