Our most versatile wheel, combining the best of all worlds in a strong package.

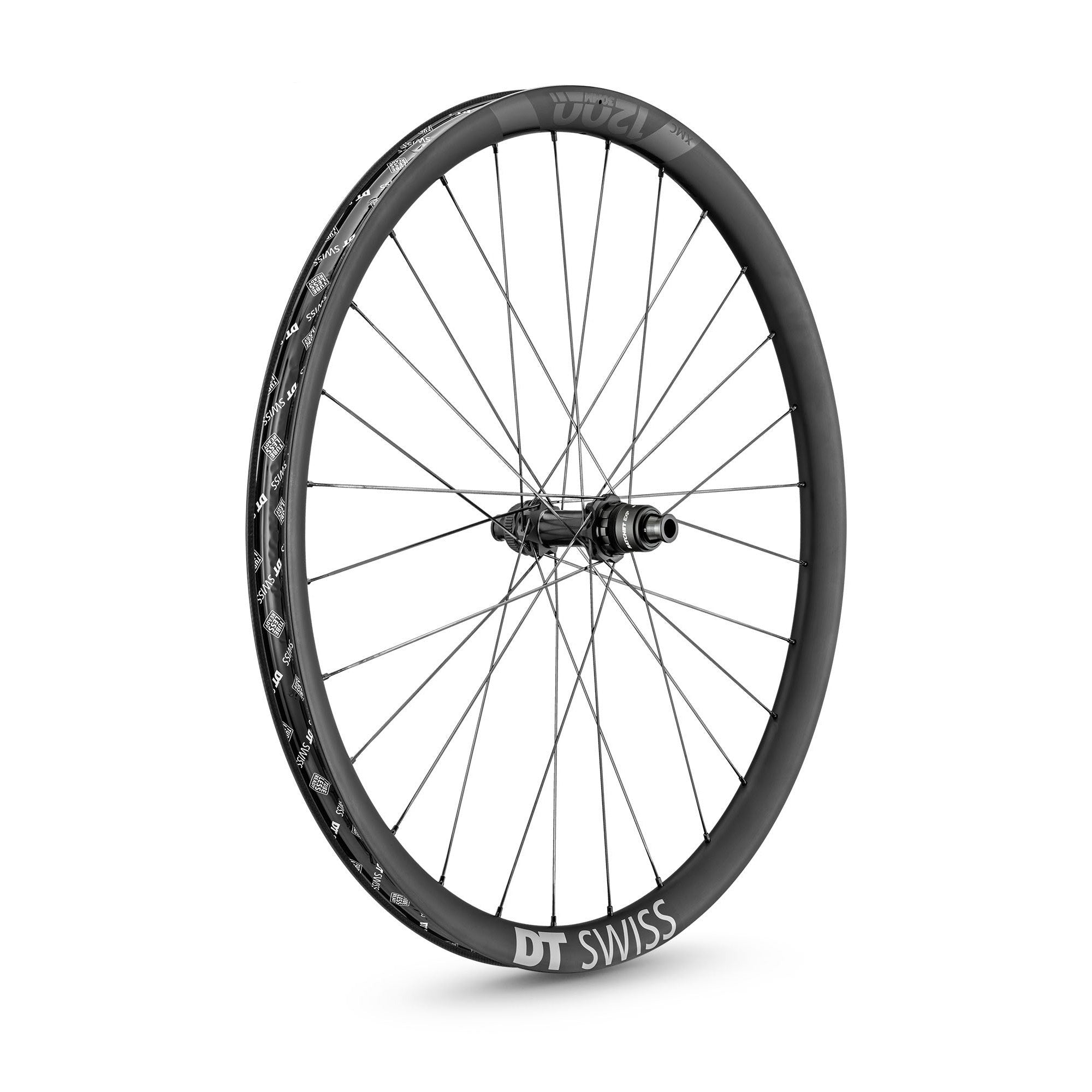

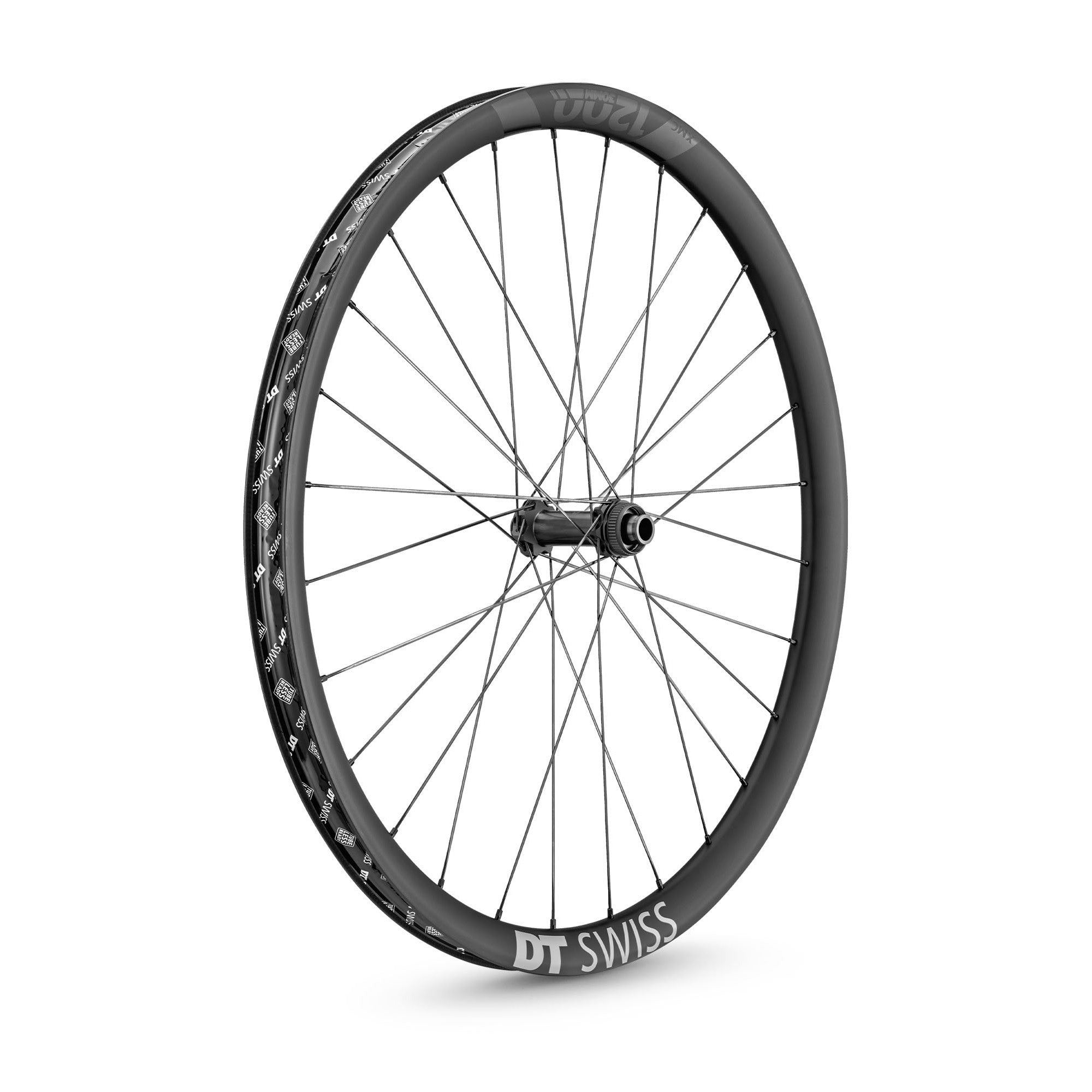

The XMC 1200 SPLINE 30 is the ultimate all mountain wheel. A carbon layup specifically tuned for all mountain use makes the rim tough yet super-light. And with a 30 mm internal width, it is made for wide rubber. The hubs feature the latest incarnation of our Ratchet System. Extremely refined machining and fully lasered graphics make them the lightest hubs DT Swiss has ever made. Together with bladed top-end spokes and perfect DT Swiss build quality, this wheelset is made to ride trails with speed and confidence.
| REAR WHEEL | FRONT WHEEL | |
| GENERAL | ||
| NET WEIGHT | 763 g | 820 g | 672 g | 709 g |
| RECOMMENDED SYSTEM WEIGHT MAX. | 120 kg | 120 kg |
| ASTM CLASSIFICATION | 4 | 4 |
| RIM | ||
| MATERIAL | Carbon | Carbon |
| RIM JOINT | - | - |
| TIRE INTERFACE | Hookless tubeless TSS | Hookless tubeless TSS |
| VALVE HOLE | Presta | Presta |
| RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
| RIM HEIGHT | 30 mm | 31 mm |
| DECAL TYPE | Waterslide | Waterslide |
| INNER WIDTH | 30 mm | 30 mm |
| OUTER WIDTH | 36 mm | 36 mm |
| HUB | ||
| HUB TYPE | 180 | 180 |
| AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
| BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
| BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
| FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
| FREEHUB SYSTEM | Ratchet EXP 36 | - |
| SPOKES & NIPPLES | ||
| SPOKES LEFT | DT aerolite® Straightpull | DT aerolite® Straightpull |
| SPOKES RIGHT | DT aerolite® Straightpull | DT aerolite® Straightpull |
| SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
| NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| INCLUSIVE | ||
| Tubeless tape 32 mm | Tubeless tape 32 mm | |
| TL valve alu black 26-35 mm | TL valve alu black 26-35 mm | |
| IS 6-bolt adapter MTB | IS 6-bolt adapter MTB | |
| Shim Micro Spline freehub kit | tools | |
| tools | wheel bag | |
| wheel bag |
