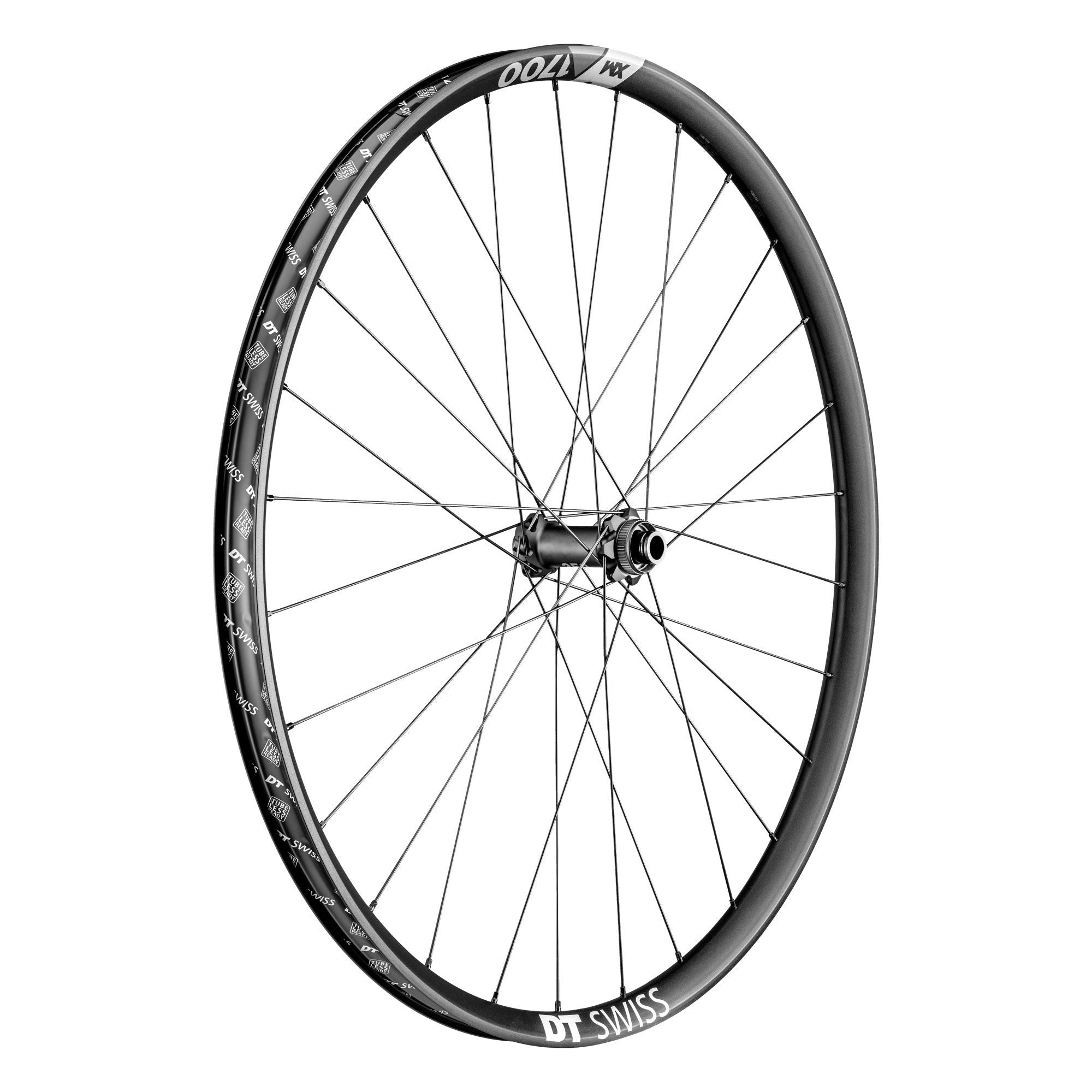

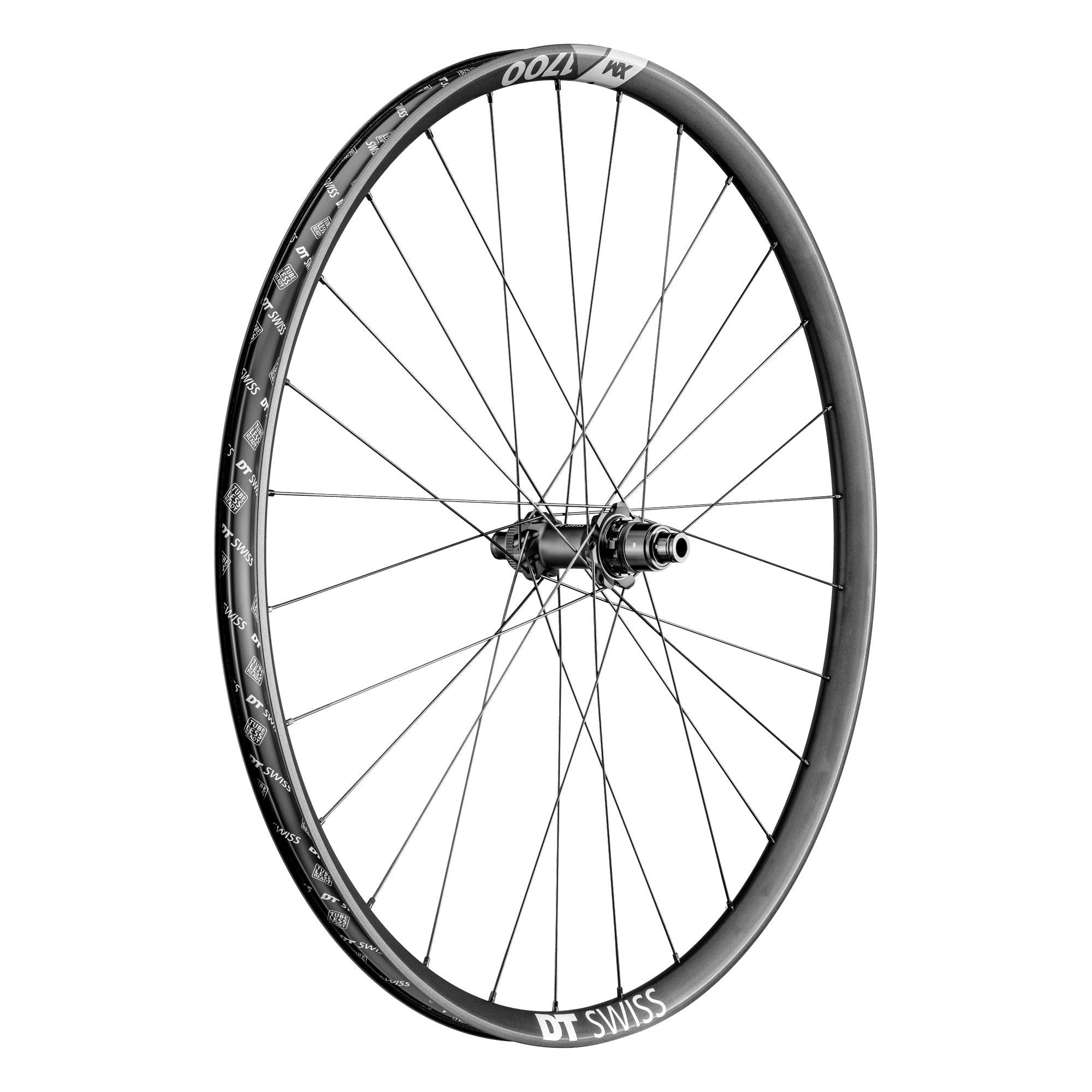

High end aluminium all mountain wheel - optimized for a versatile riding style.
The best aluminium all mountain wheels. Period. That is what we designed the XM 1700 SPLINE wheels to be. Whether this is actually the case is up to you to decide. But we have given it everything needed to dominate the mountain. Light and robust welded rims, perfect tubeless compatibility for grip and puncture resistance as well as our reliable hubs with RATCHET freehub and a 36 tooth engagement. Equipped with the XM 1700 SPLINE nothing can stop you from your personal all mountain adventure.
| REAR WHEEL | FRONT WHEEL | |
| GENERAL | ||
| NET WEIGHT | 919 g | 829 g |
| RECOMMENDED SYSTEM WEIGHT MAX. | 120 kg | 120 kg |
| ASTM CLASSIFICATION | 4 | 4 |
| RIM | ||
| MATERIAL | Aluminum | Aluminum |
| RIM JOINT | Welded | Welded |
| TIRE INTERFACE | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| VALVE HOLE | Presta | Presta |
| RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
| RIM HEIGHT | - | - |
| DECAL TYPE | Waterslide | Waterslide |
| INNER WIDTH | 30 mm | 30 mm |
| OUTER WIDTH | 35 mm | 35 mm |
| HUB | ||
| HUB TYPE | 350 | 350 |
| AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
| BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
| BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
| FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
| FREEHUB SYSTEM | Ratchet System 36 SL | - |
| SPOKES & NIPPLES | ||
| SPOKES LEFT | DT competition® Straightpull | DT competition® Straightpull |
| SPOKES RIGHT | DT competition® Straightpull | DT competition® Straightpull |
| SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
| NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| INCLUSIVE | ||
| Tubeless tape 32 mm | Tubeless tape 32 mm | |
| Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm | |
| IS 6-bolt adapter MTB | IS 6-bolt adapter MTB | |
