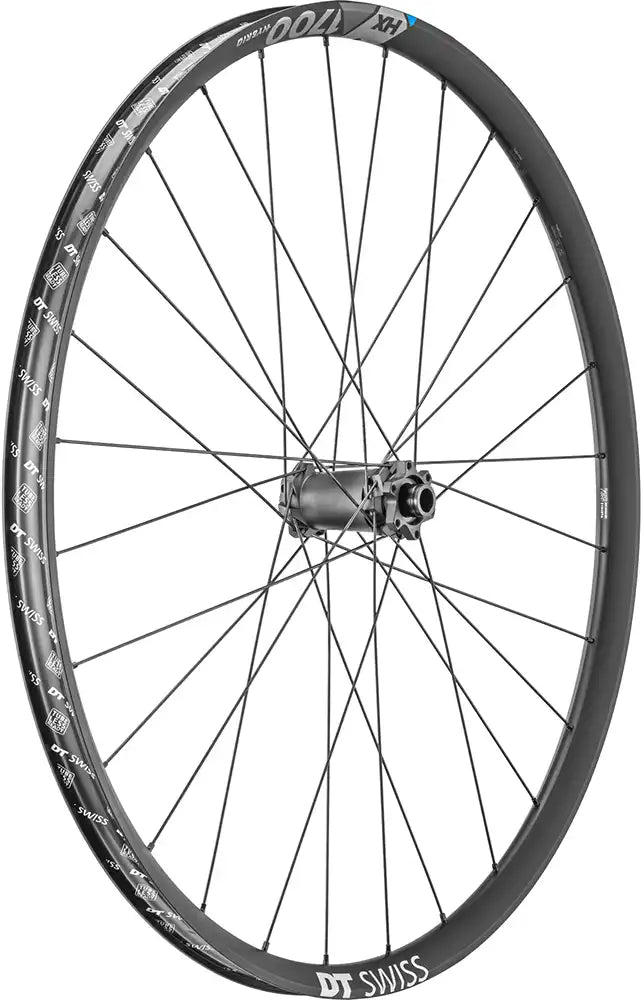

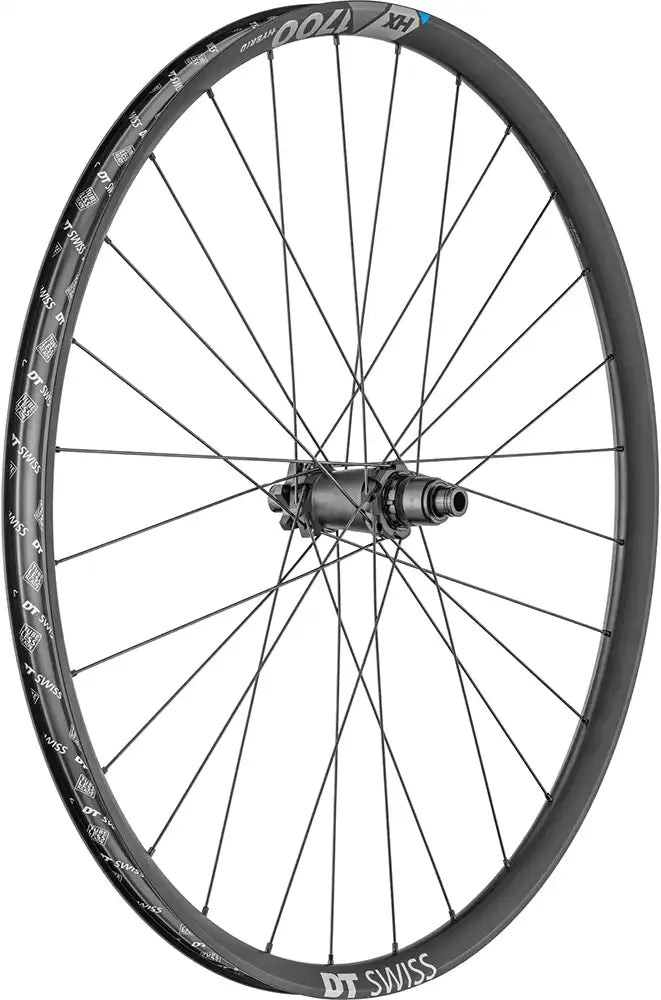

An eMTB is designed to quickly ride up and down mountains and to provide fun. The new HX 1700 SPLINE, the high-end aluminum wheelset, does precisely that. With several years of expertise in hybrid bicycle components and specific, demanding testing procedures, DT Swiss has redesigned this wheelset to suit the extended use of e-mountain biking. The redesigned 350 hub features a bigger hub body, enabling better brake and drive torque resistance, resulting in better durability. The new hub is now combined with a high-end welded aluminum rim and reinforced hybrid spokes. This wheel is available in two inner widths and two wheel sizes and therefore ready for anyone who wants to extend their eMTB adventure.
| REAR WHEEL | FRONT WHEEL | REAR WHEEL | FRONT WHEEL | |
| GENERAL | ||||
| NET WEIGHT | 1139g | 1005g | 1086g | 952g |
| RECOMMENDED SYSTEM WEIGHT MAX | 150kg | 150kg | 150kg | 150kg |
| ASTM CLASSIFICATION | 2 | 2 | 2 | 2 |
| RECOMMENDED FOR eBikes | Yes | Yes | Yes | Yes |
| RIM | ||||
| MATERIAL | Aluminium | Aluminium | Aluminium | Aluminium |
| RIM JOIN | Welded | Welded | Welded | Welded |
| TYRE INTERFACE | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| VALVE HOLE | Presta | Presta | Presta | Presta |
| RIM DIAMETER | 29"" / 700C | 29"" / 700C | 27.5"" / 650B | 27.5"" / 650B |
| RIM HEIGHT | 21mm | 21mm | 21mm | 21mm |
| INNER WIDTH | 30mm | 30mm | 30mm | 30mm |
| OUTER WIDTH | 35mm | 35mm | 35mm | 35mm |
| HUB | ||||
| HUB TYPE | 350 | 350 | 350 | 350 |
| AXLE SYSTEM | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| BUILT-IN DIMENTION | 148mm Boost | 110mm Boost | 148mm Boost | 110mm Boost |
| BRAKE INTERFACE | Disc IS (6 Bolt) | Disc IS (6 Bolt) | Disc IS (6 Bolt) | Disc IS (6 Bolt) |
| CASSETTE INTERFACE | Sram XD | - | Sram XD | - |
| FREEHUB BODY | SRAM XD Steel (SSRAM) | - | SRAM XD Steel (SSRAM) | - |
| FREEHUB SYSTEM | Ratchet System 24 | - | Ratchet System 24 | - |
| SPOKES & NIPPLES | ||||
| SPOKES LEFT | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull |
| SPOKES RIGHT | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull | DT hybrid 1 Straightpull |
| SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) | Three-cross (1:1) | Three-cross (1:1) |
| NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| INCLUSIVE | ||||
| Tubeless tape 32 mm | Tubeless tape 32 mm | Tubeless tape 32 mm | Tubeless tape 32 mm | |
| Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm |
"
