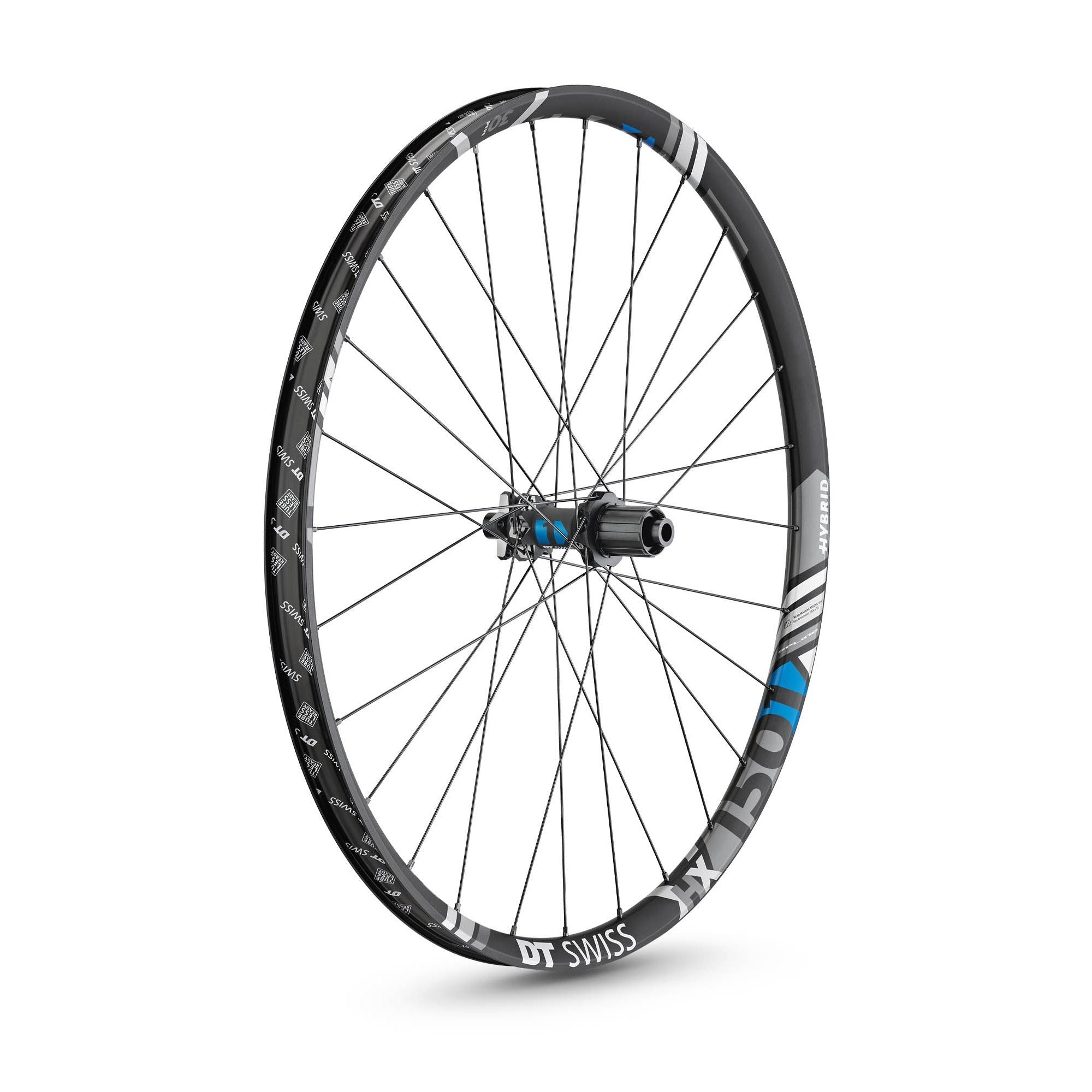

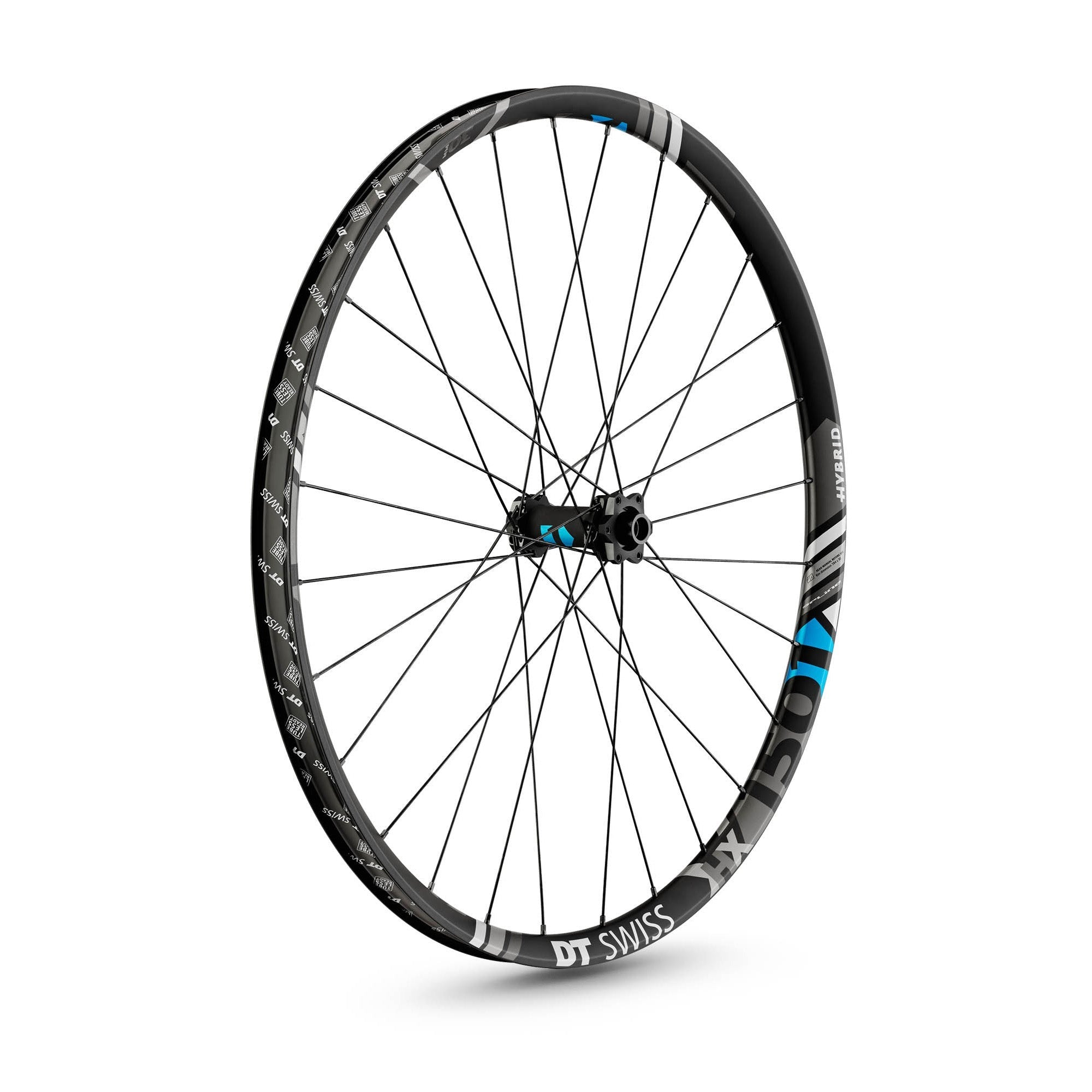

DT Swiss HX 1501 Spline One 30 Tubeless Disc eMTB Wheel

Original price $749.99 - Original price $899.99
Original price
$749.99
$749.99 - $899.99
Current price $749.99
SKU
Availability:
Only 2 left!
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock

ONLINE ONLY ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 day handling period for these items

Choose a Size

eMTB specific 240 hub laced with stronger spokes in a reinforced rim - an eMTB Dream.

or some, flow means to pedal up a never ending gravel climb and getting into a trance-like rhythm. To others, flow is when corners are linked up seamlessly, dirt flying sideways. And yet another group of riders seeks new adventure in burly terrain. Either way: The wheels of the HX 1501 SPLINE ONE line up feel right at home doing all of the above. Strong, light and offering the right width for your riding needs, it climbs with the best and descends with the best. The Ratchet System is the most durable freehub system out there, safely driving you forward in any conditions, at any time. A light and strong spec through and through makes sure you pedal into the flow, whatever your flow is.

  REAR WHEEL FRONT WHEEL
GENERAL
NET WEIGHT 1076 g | 1128 g 902 g | 953 g
RECOMMENDED SYSTEM WEIGHT MAX. 150 kg 150 kg
ASTM CLASSIFICATION 4 4
RIM
MATERIAL Aluminum Carbon
RIM JOINT - -
TIRE INTERFACE Tubeless crotched/Clincher TC Hooked / Crotchet tubeless TC
VALVE HOLE Presta Presta
RIM DIAMETER 27.5"/650B | 29"/700C 27.5"/650B | 29"/700C
RIM HEIGHT 21 mm 22 mm
DECAL TYPE Waterslide Waterslide
INNER WIDTH 30 mm 30 mm
OUTER WIDTH 35 mm 35 mm
HUB
HUB TYPE 240 240
AXLE SYSTEM 12 mm Thru Axle 15 mm Thru Axle
BUILT-IN DIMENSION 148 mm Boost 110 mm Boost
BRAKE INTERFACE Disc IS (6-bolt) Disc IS (6-bolt)
FREEHUB BODY Shimano Steel (SS) -
FREEHUB SYSTEM Ratchet System 24 -
SPOKES & NIPPLES
SPOKES LEFT DT hybrid 2 DT hybrid 2
SPOKES RIGHT DT hybrid 2 DT hybrid 2
SPOKE PATTERN Three-cross (1:1) Three-cross (1:1)
NIPPLES DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu
INCLUSIVE
  Tubeless tape 32 mm Tubeless tape 32 mm
  Tubeless valve MTB 32 mm Tubeless valve MTB 32 mm
