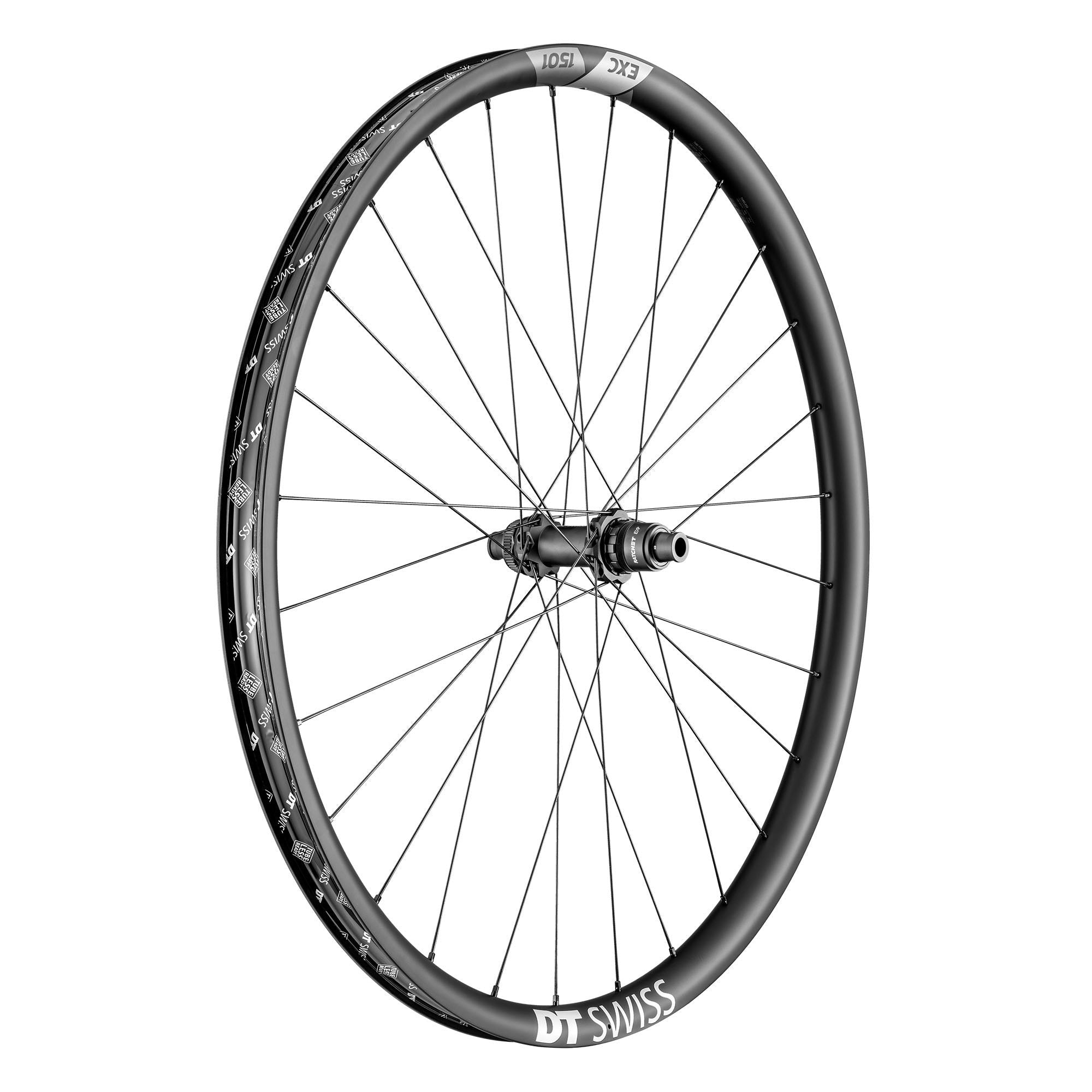

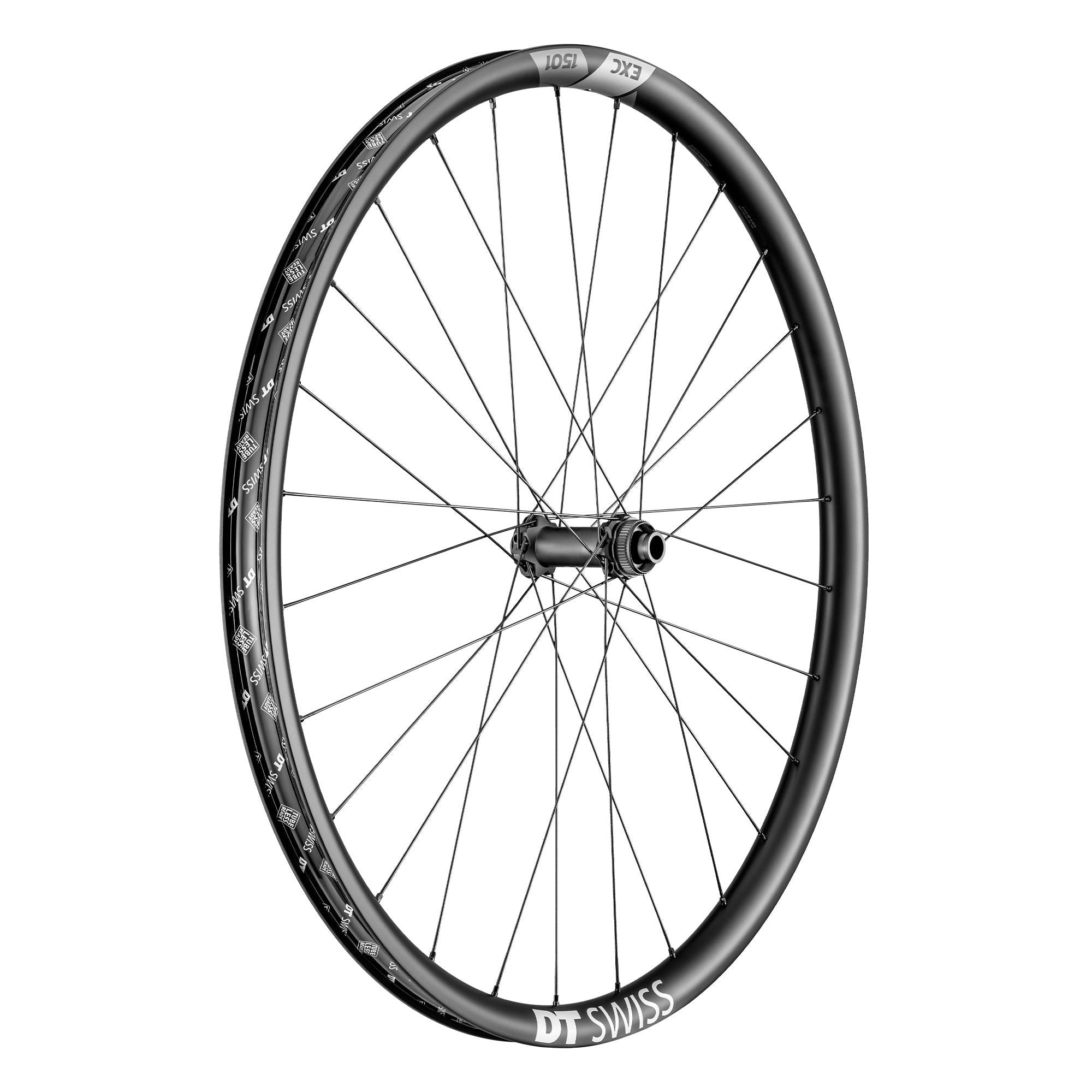

Tough enduro carbon rim paired with a durable 240 hub - a package for going fast.
The EXC 1501 SPLINE ONE combine everything a modern enduro rider wants in one wheelset. The 30 mm wide carbon rims give you the precision to stay on track even on the trickiest lines while a 240 hub with the latest RATCHET EXP freehub system puts your power down to the ground. Both components are held together by performance weight optimized competition race straightpull spokes.
| REAR WHEEL | FRONT WHEEL | |
| GENERAL | ||
| NET WEIGHT | 849 g | 891 g | 760 g | 802 g |
| RECOMMENDED SYSTEM WEIGHT MAX. | 130 kg | 130 kg |
| ASTM CLASSIFICATION | 4 | 4 |
| RIM | ||
| MATERIAL | Carbon | Carbon |
| RIM JOINT | - | - |
| TIRE INTERFACE | Hookless tubeless TSS | Hookless tubeless TSS |
| VALVE HOLE | Presta | Presta |
| RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
| RIM HEIGHT | - | - |
| DECAL TYPE | Waterslide | Waterslide |
| INNER WIDTH | 30 mm | 30 mm |
| OUTER WIDTH | 36 mm | 36 mm |
| HUB | ||
| HUB TYPE | 240 | 240 |
| AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
| BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
| BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
| FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
| FREEHUB SYSTEM | Ratchet EXP 36 | - |
| SPOKES & NIPPLES | ||
| SPOKES LEFT | DT competition® race straightpull | DT competition® race straightpull |
| SPOKES RIGHT | DT competition® race straightpull | DT competition® race straightpull |
| SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
| NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| INCLUSIVE | ||
| Tubeless tape 32 mm | Tubeless tape 32 mm | |
| TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | |
| Shim Micro Spline freehub kit | ||
