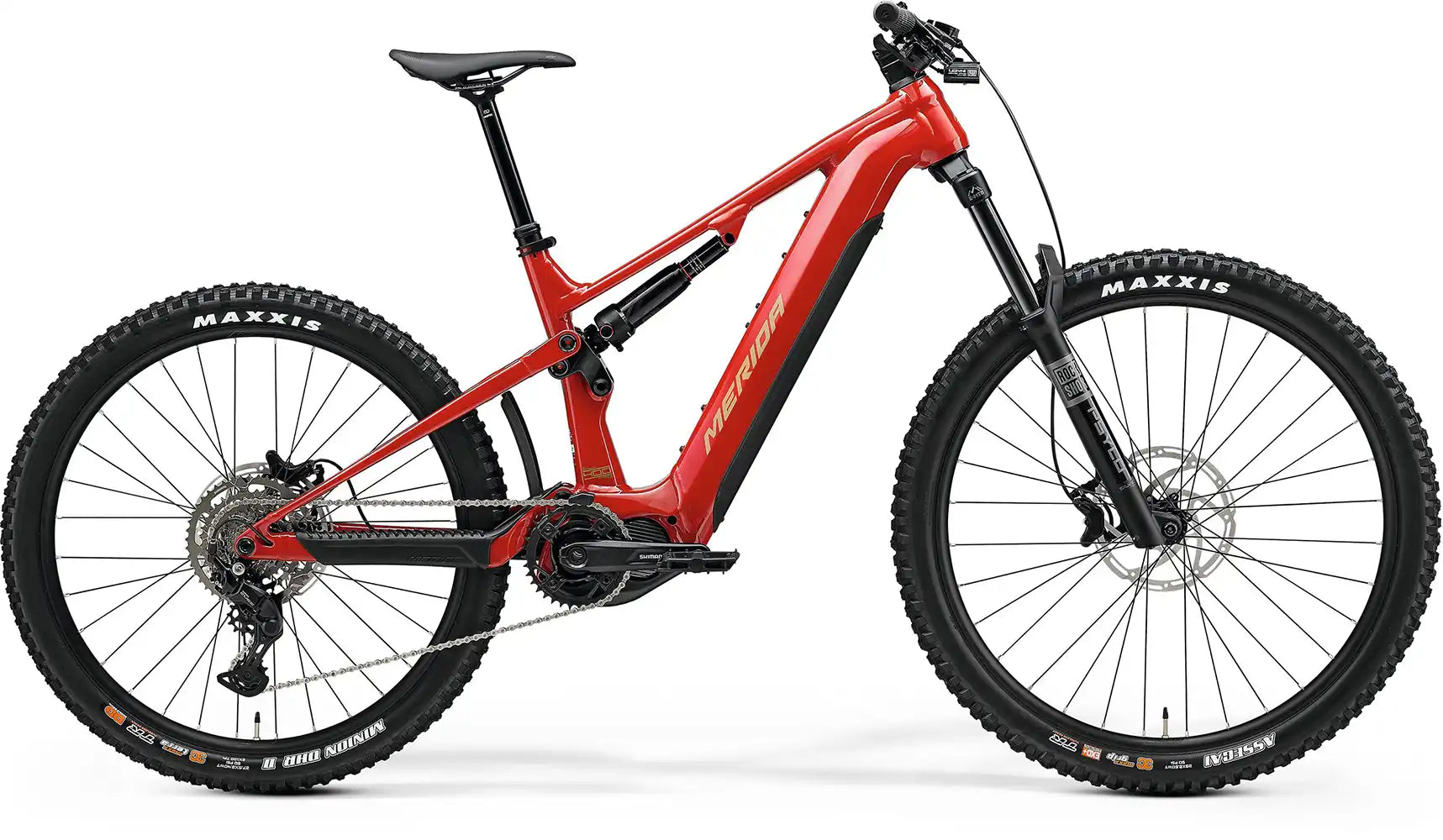

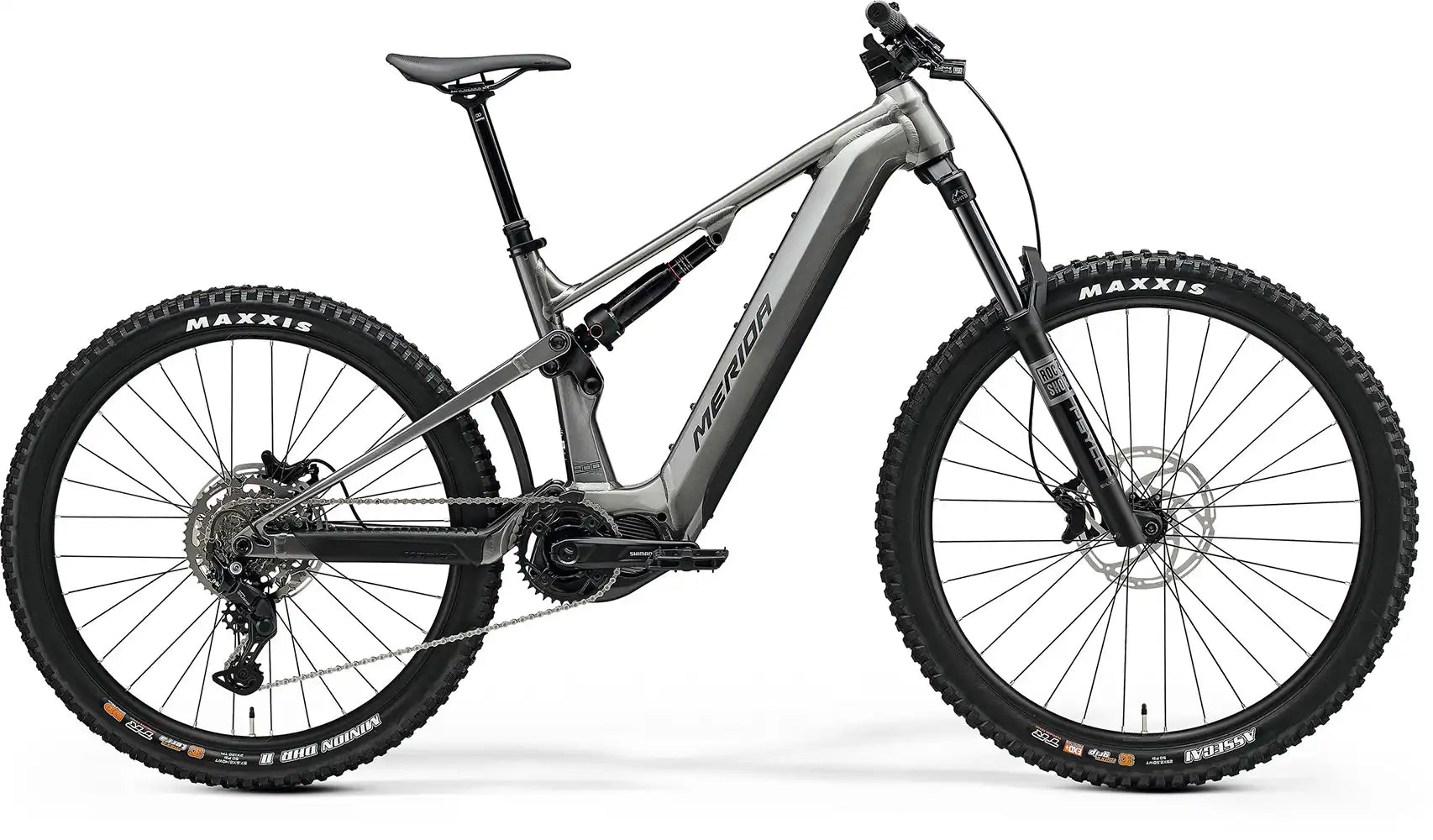

Our new eONE-SIXTY delivers no-compromise e-enduro performance. Whether you are looking for a full power e-bike with minimal mass and uncompromising handling, or a big mountain shredder with maximum range, our eONE-SIXTY range has the perfect option for you.
Frame: eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
Shock: Rock Shock Deluxe
Fork: Rock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
Brake - Front: Tektro Gemini M535; 4 piston
Brake - Rear: Tektro Gemini M535; 4 piston
Rotor - Front: Tektro TR203-45; 203mm
Rotor - Rear: Tektro TR203-45; 203mm
Chain: Shimano LG500
Chainwheel: FSA 1x Steel Chainring; 36 ATC
Crank/Size: Shimano FC-EM600; 165 mm for all sizes
Bb Set: included
Dera - Rear: Shimano Cues U4000; GS
Freewheel: Shimano LG400-9; 11-46 ATC; 9 GER
Pedal: VP VPE-533
Grip: MERIDA EXPERT EC
H-Bar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
H-B Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem/Size: 40 mm all sizes
Head Set: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Hub - Front: Shimano TC500-B; 15x100 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano TC500; 12x148 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rim: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT - XL: 230 SPT
Shifter - Front: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post)
Shifter - Rear: Shimano Cues U4000-9
Inner Tube: 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
Tyre - Front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre - Rear: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
Fender: EOF-204
Light - Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light - Rear: CG-404RG-BLK
Drive Unit: Shimano EP801; 85Nm
Drive Cover: CR-010 + CR011
Battery: Shimano EN806; 630Wh
Battery Charger: Shimano EC-E6002; 2A charging current
Battery Lock: Abus key
Display: Shimano SC-EN500
