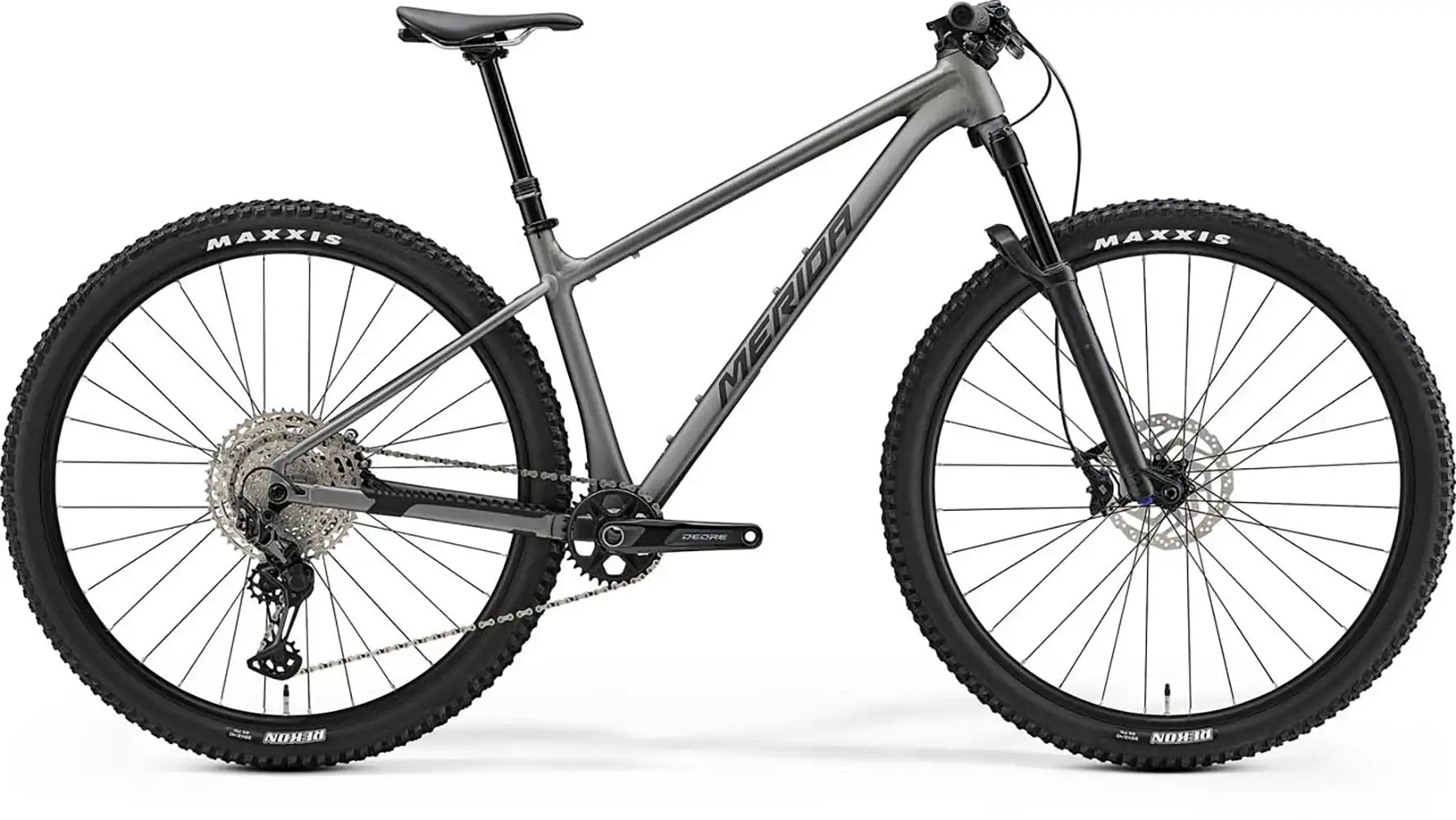

Blurring the line between cross-country and trail, we pair a high-value, high-performance aluminium frame with a 120 Manitou mm fork, high-volume 2.4" tyres and a control-enhancing dropper post.
Frame: BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Fork: Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset
Brake - Front: Shimano SLX M7100; 2 piston
Brake - Rear: Shimano SLX M7110; 2 piston
Rotor - Front: Shimano RT10; 180mm
Rotor - Rear: Shimano RT10; 180mm
Chain: KMC X12
Chainwheel: Shimano Deore M6100; 32 ATC
Crank/Size: 170 mm-S, 175 mm-M up
Bb Set: Shimano BB-MT-501; 24mm
Derailleur - Rear: Shimano XT; SGS
Freewheel: Shimano Deore M6100; 10-51 ATC; 12 GER
Grip: MERIDA COMP EC
H-Bar: MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat
H-B Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD
H-Stem/Size: S, M, L: 60 mm, XL, XXL 70 mm
Hub - Front: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT TR; 30.9 DSP; 0 SSB; S 125 SPT - M 150 SPT - L/XL/XXL 170 SPT
Shifter - Rear: Shimano Deore M6100
Tyre - Front: Maxxis Rekon; 29x2.4"; wire
Tyre - Rear: Maxxis Rekon; 29x2.4"; wire
Other 1: MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount
Other 2: Brake Adapter SM-MA-R160D/D
Other 5: MERIDA Multitool with saddlebox
