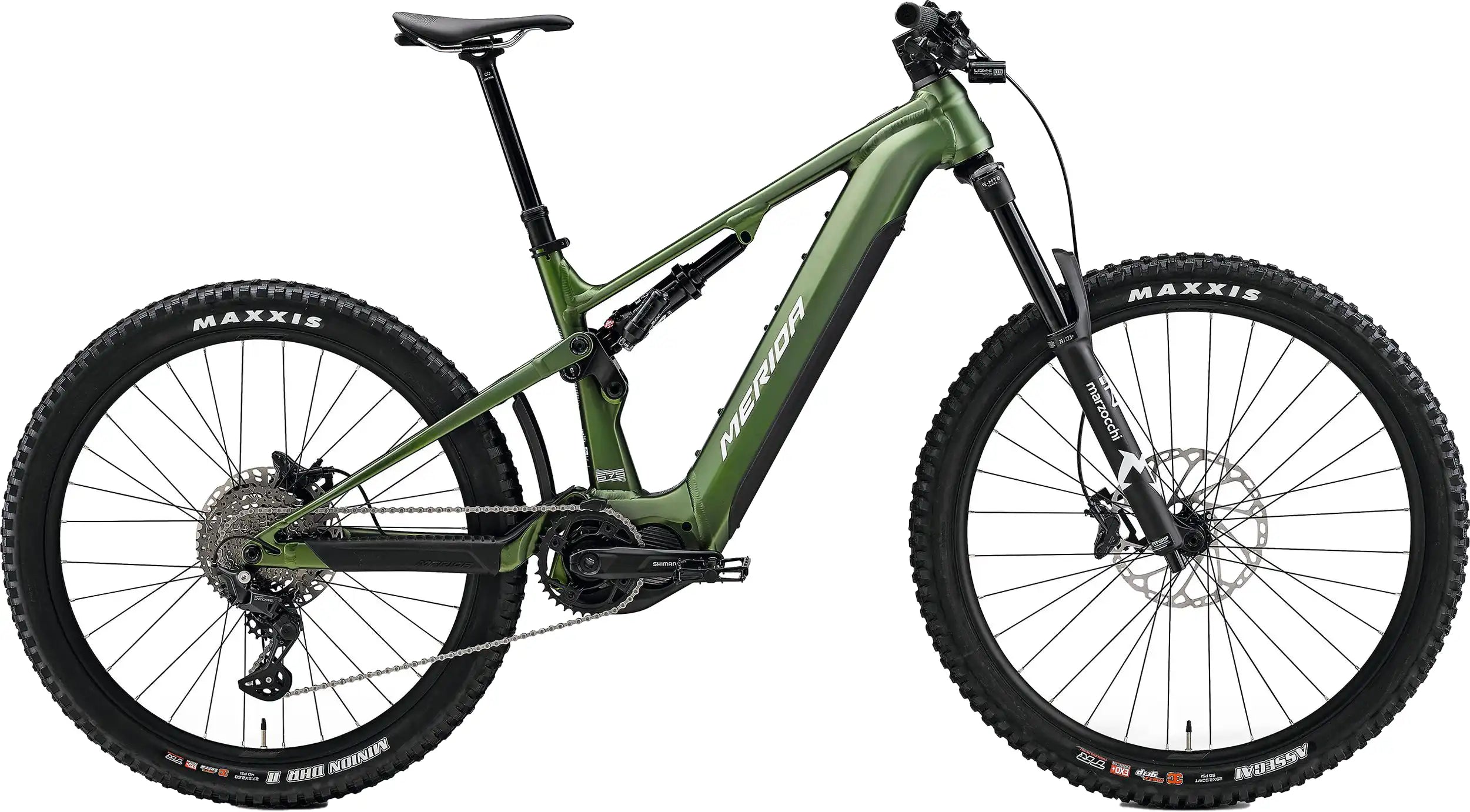

Maximise your riding range while minimising your spend. Our hard-hitting aluminium frame gets our award-winning suspension and sizing, paired with a 750 Wh removable battery and optional range extender. Add in Marzocchi suspension and a tough Shimano drivetrain, and you're set.
Frame: eONE-SIXTY LITE IV; MAT aluminium; 174 mm STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
Sizes: Short - Mid - Long - XLong
Fork: Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
Rear Shock: Marzocchi Bomber Air; platform
Drive Unit: Shimano EP801; 85Nm
Battery: Trendpower Internal Battery Gen 2; 750Wh
Battery Charger: Trendpower EU Charger; 4A
Display: Shimano SC-EM800
Mode Switch: Shimano SW-EM800-L
Rear Derailleur: Shimano Deore RDM5130 LinkGlide 10
Shifters: Shimano XT M5130 10
Dropper Post Lever: Shimano SL -MT500-L
Brake - Front: Shimano Deore M6120; 4 piston
Brake - Rear: Shimano Deore M6120; 4 piston
Rotor - Front: Shimano RT64; 220 mm
Rotor - Rear: Shimano RT-EM910; 203 mm
Chainring: FSA 1x Steel Chainring; 36 ATC
Crank: Shimano FC-EM600; 165 mm for all sizes
Chain: Shimano LG500
Cassette: Shimano LG400; 11-43 ATC; 10 GER
Pedals: VP VPE-527
Handlebar: MERIDA EXPERT eTR; 780 WHB; 20 RHB
Handlebar Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem Length: 40 mm all sizes
Headset: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT
Saddle: MERIDA EXPERT CC; V-mount
Hub - Front: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano TC600-HM-B; 148x12 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Tyre - Front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre - Rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Light Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light Rear: LEZYNE LED FEMTO USB REAR STVZO
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 140kg
