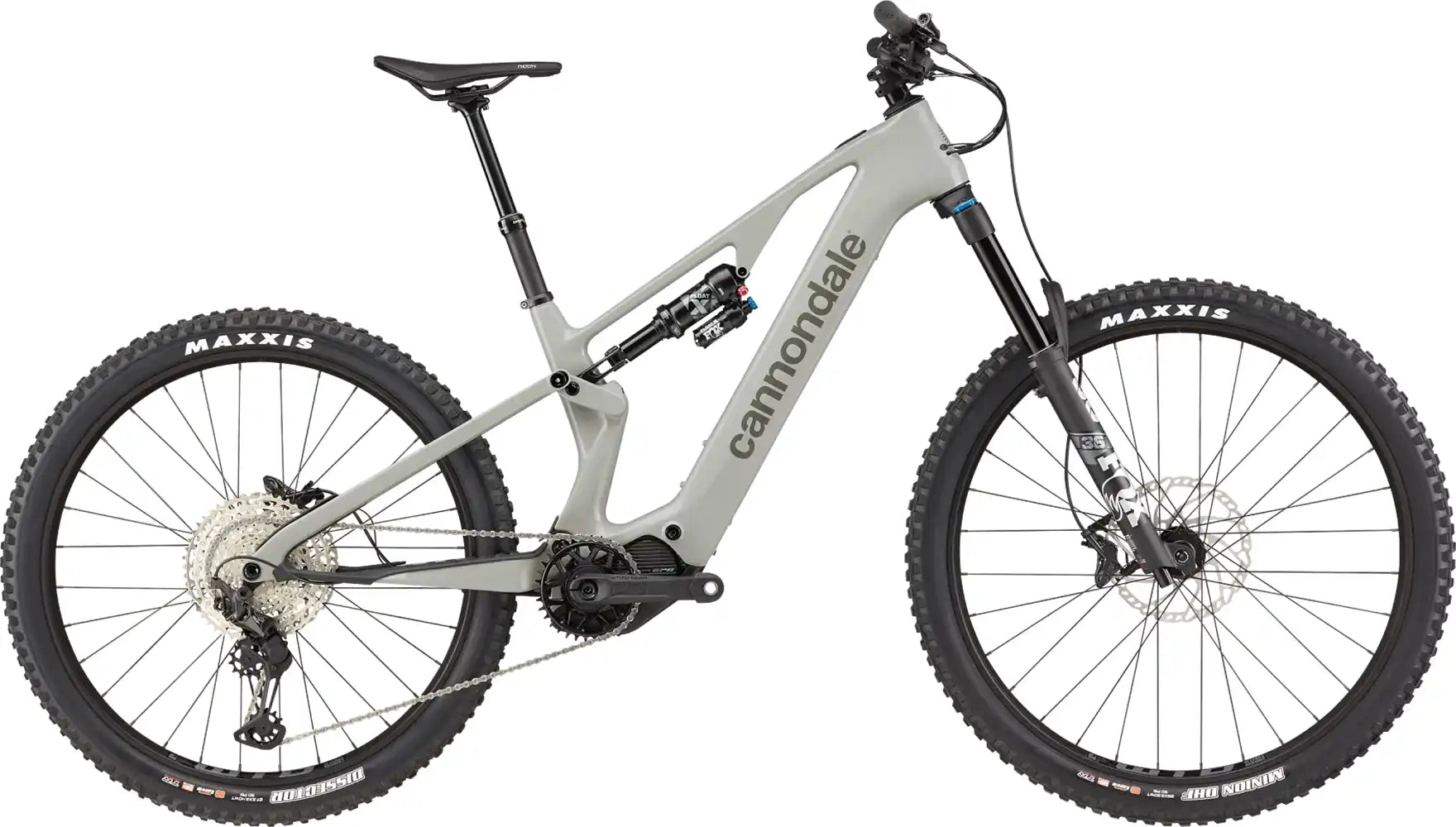

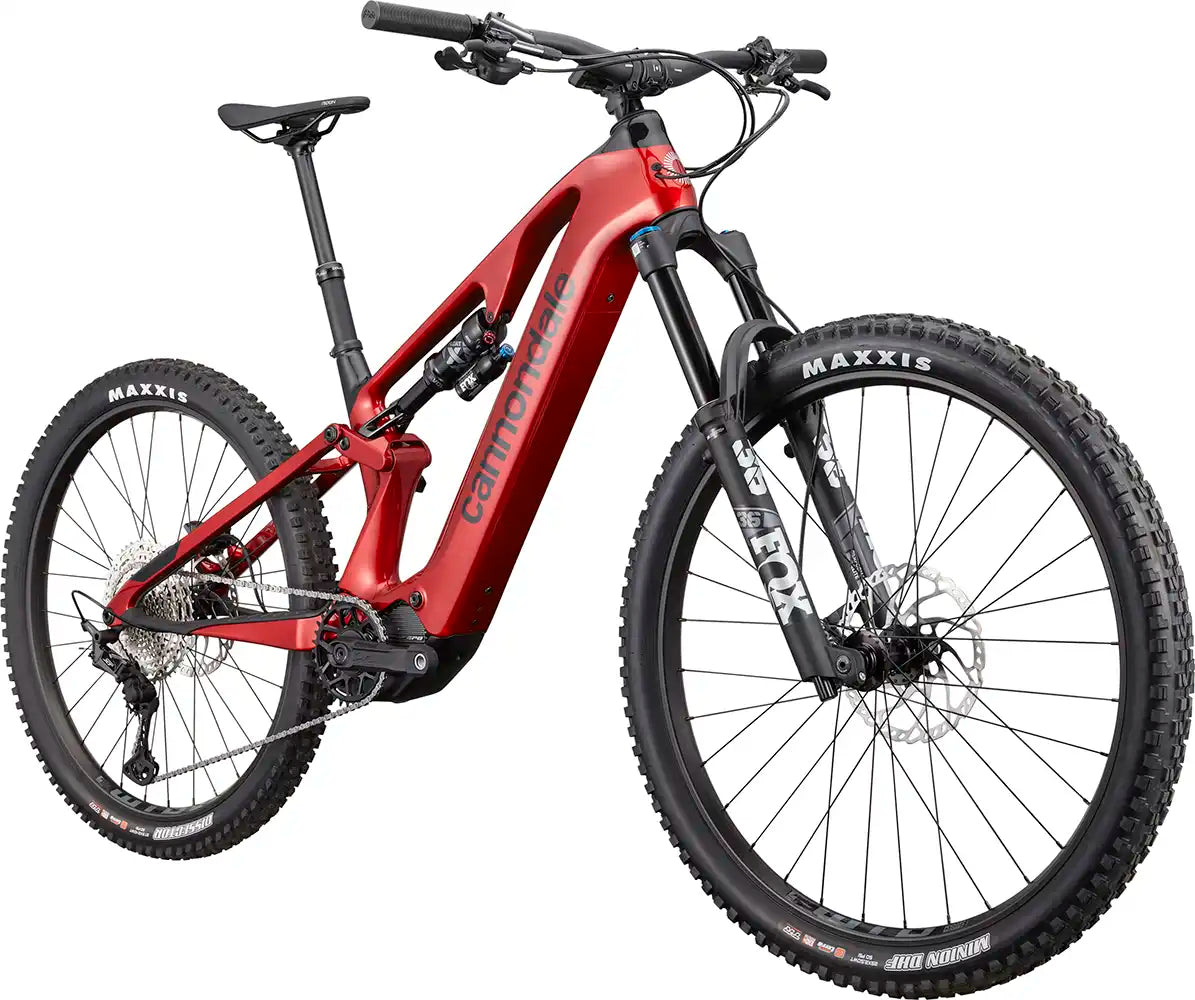

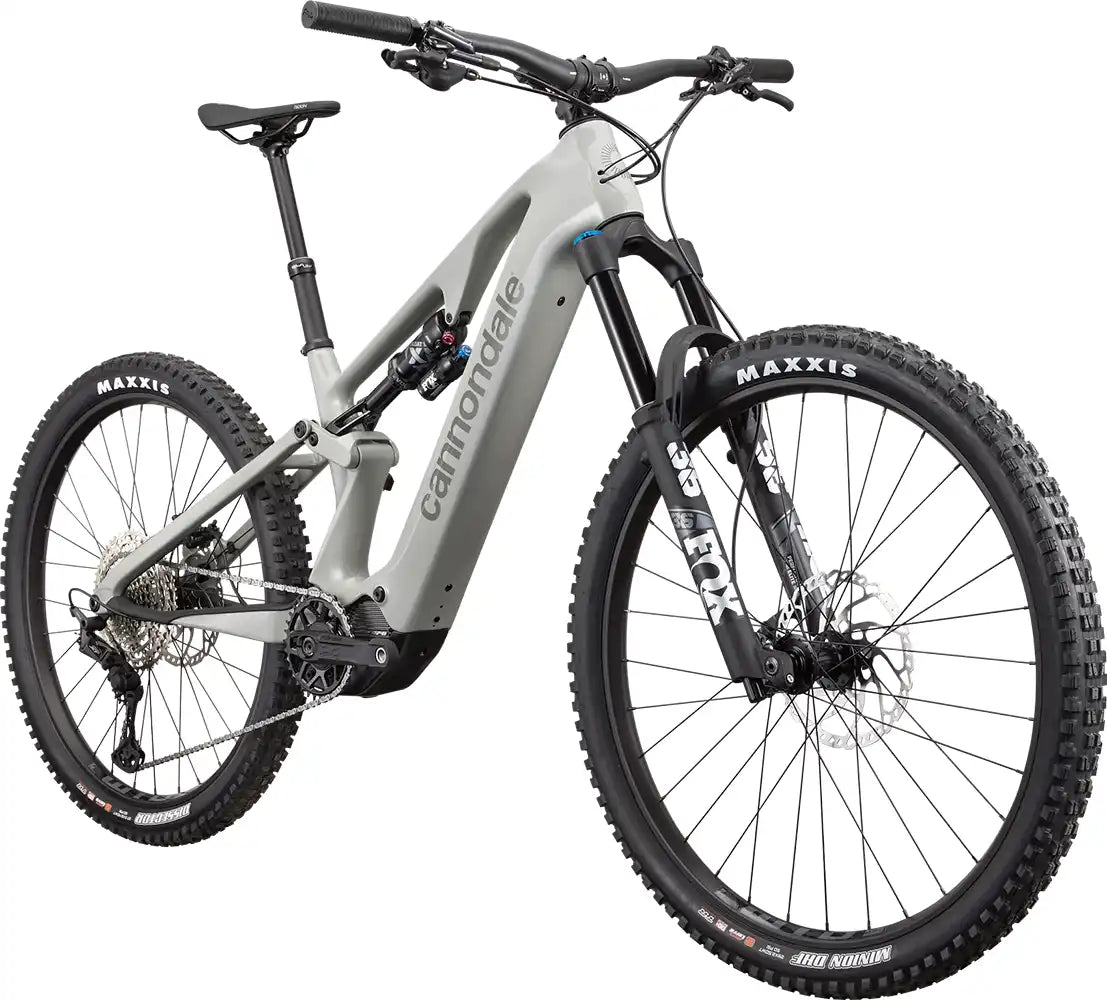

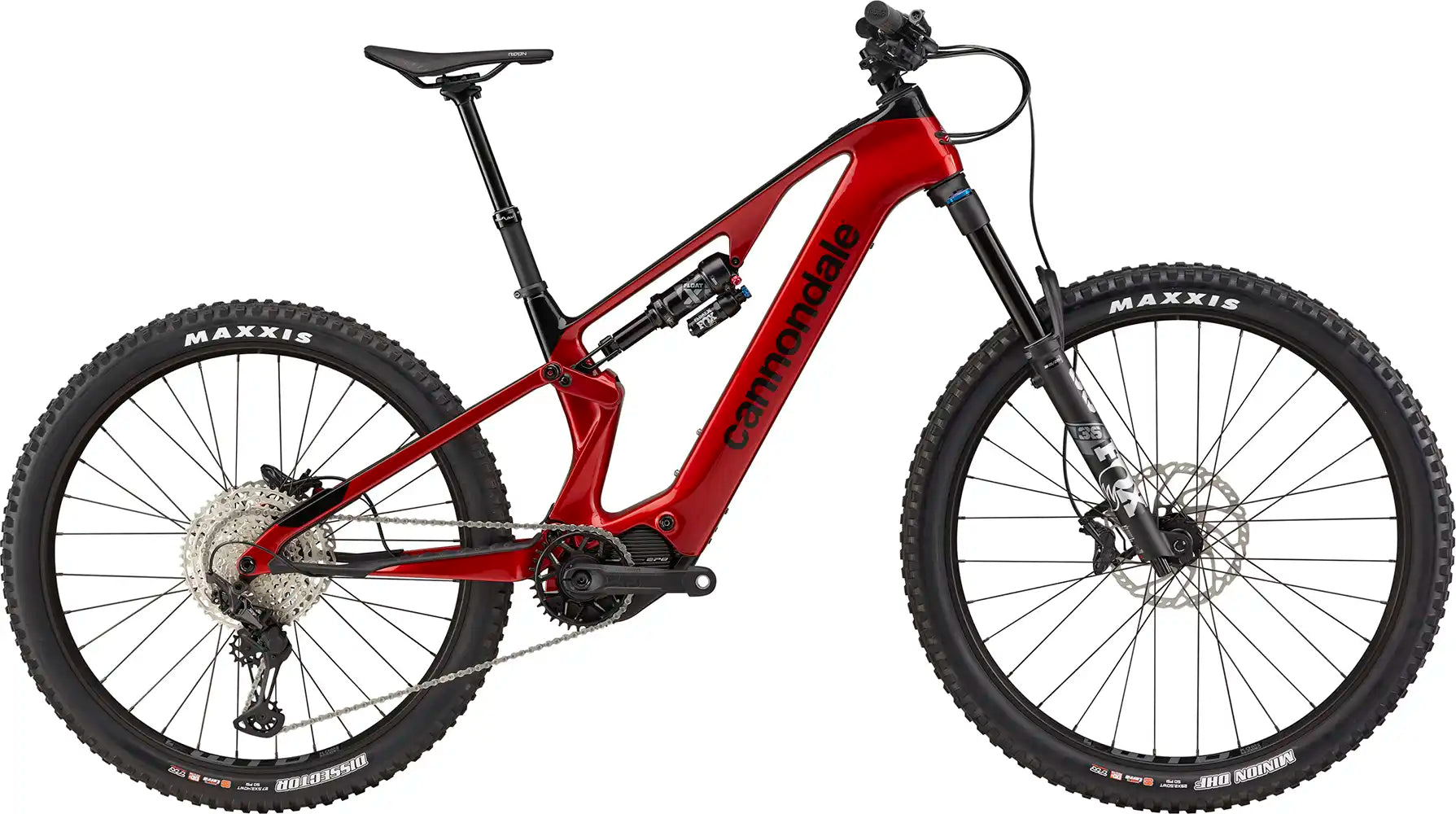

2024 Cannondale Moterra SL 2
Moterra SL is the first 150mm trail bike to pack 85Nm of torque, 600W+ of sustained output, and 601Wh of power into a machine weighing as little as 19.3kg /43lbs. Full-power fun meets lightweight agility – it’s in a class of its own. *eMTB with drive unit capable of at least 85Nm of torque and battery capacity of at least 600Wh.
Frame: Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, 1-1/8” – 1.5” tapered headtube, angle adjust headset
Fork: Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock: Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
Rims: Stans Arch MK4, 32H, tubeless ready
Hubs: (F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
Spokes: DT Swiss Champion
Tires: (F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready
Crank: e*thirteen e*spec Plus, 165mm, 34T
Chain: Shimano Deore 6100, 12-speed
Rear Cogs: Shimano Deore 6100, 10-51, 12-speed
Rear Derailleur: Shimano XT
Shifters: Shimano Deore M6100, 12-speed
Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips: Cannondale TaperRidge
Stem: Cannondale 3, 6061 Alloy, 31.8, 0°
Headset: Acros Adjustable Angle (1.2°)
Brakes: Magura MT5 4-piston hydraulic disc w/ Storm HC 203mm, 6-bolt rotors
Brake Levers: Magura MT5 hydraulic disc
E-bike Display: Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
E-Bike Battery: Custom 601Wh battery
E-bike Charger: Custom 4A
E-bike Drive Unit: Shimano EP801, 85Nm, Custom Tuned, Walk, Eco, Trail, Boost and Turbo Modes
Saddle: Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
Speeds: 12
Chain Device: Null
Connectivity: Null
Fork Travel: 160mm
Frame Travel: 150mm
Tire Size: 2.6
Material: Carbon
Extra's: Null
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
