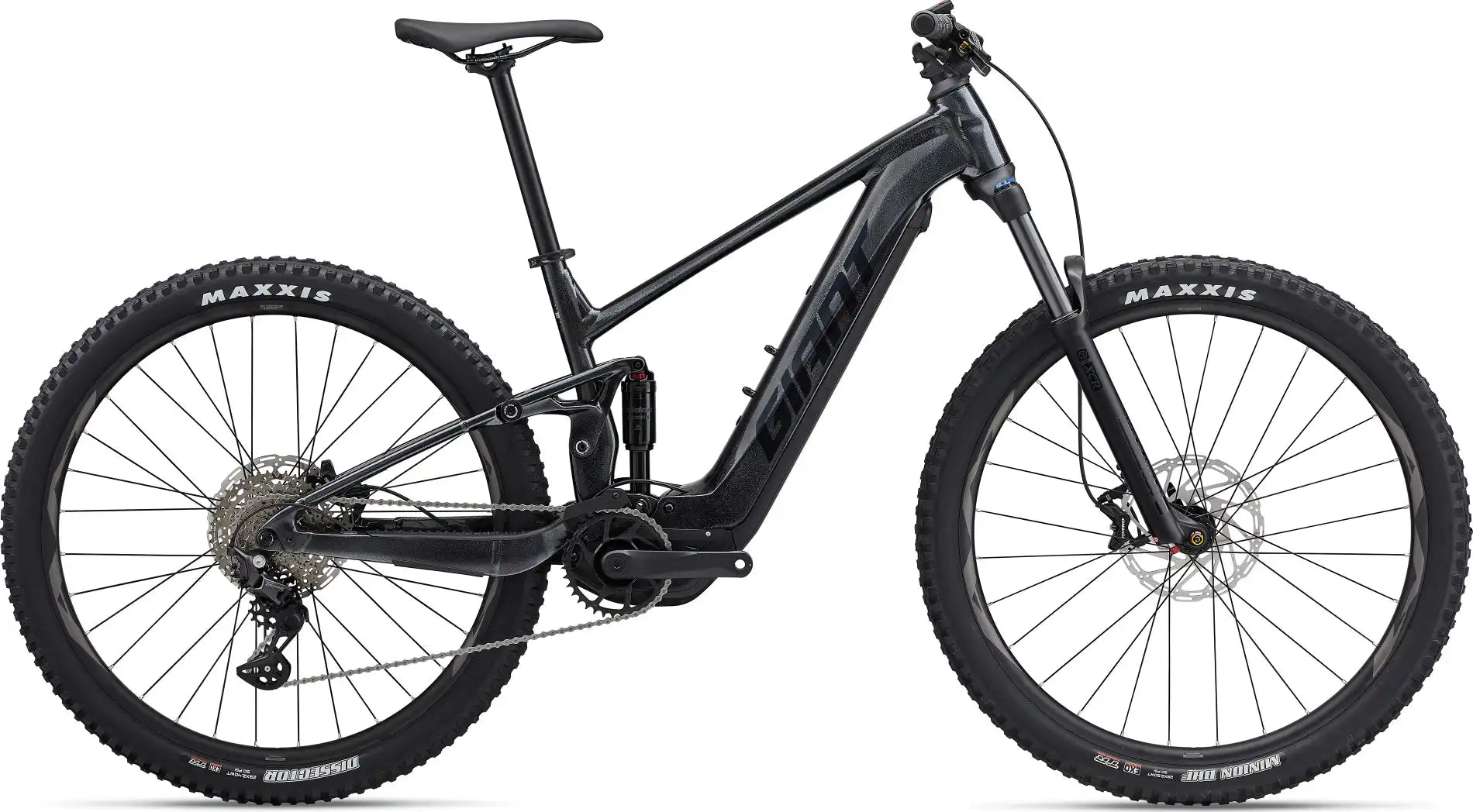

Ride trails with confidence, control and flat-out fun. This new E-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
Sizes: S, M, L, XL
Colours: Black Diamond
Motor: SyncDrive Sport 2, 75Nm, powered by Yamaha
Battery: Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible
Controller: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Display: RideControl Dash, full colour LCD screen
Charger: Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h
Frame: ALUXX SL-grade aluminium, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
Fork: SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
Shock: SR Suntour Raidon R, 190x45mm, recommended sag: 30%
Handlebar: Giant Connect TR Riser
Grips: Giant Tactal single lock-on
Stem: Giant Contact
Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle: Giant Sport
Pedals: Platform
Shifters: Shimano Deore LinkGlide
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore LinkGlide, 10-speed
Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
Brake Levers: Tektro HD-M745 Orion
Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain: Shimano, LinkGlide, CN-LG500
Crankset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
Rims: Giant AM 29"
Hubs: Giant eTracker Boost, [F] 110x15 [R] 148x12mm
Spokes: Stainless Steel
Tires: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI [R]
Lock: Torx 25 Battery Lock with built-in Torque limiter
