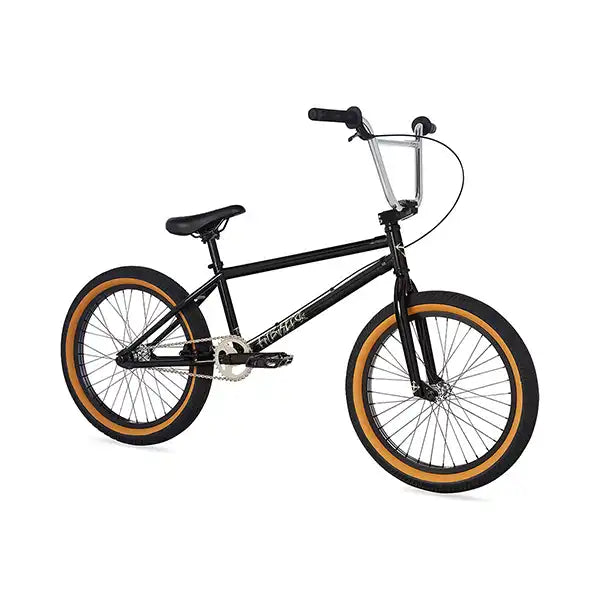

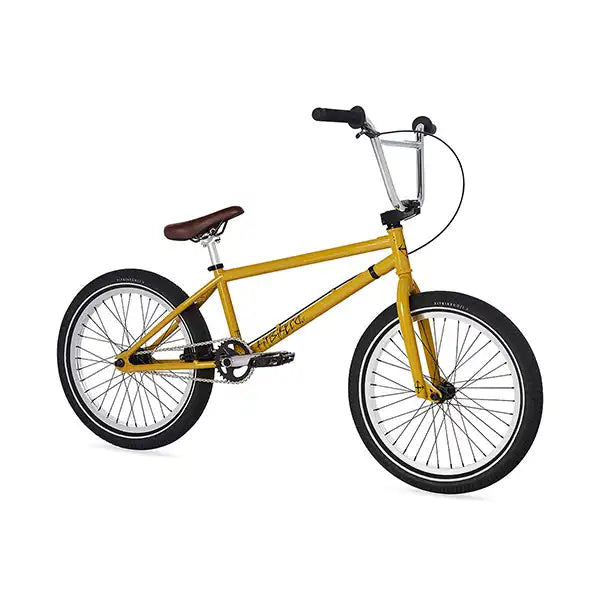

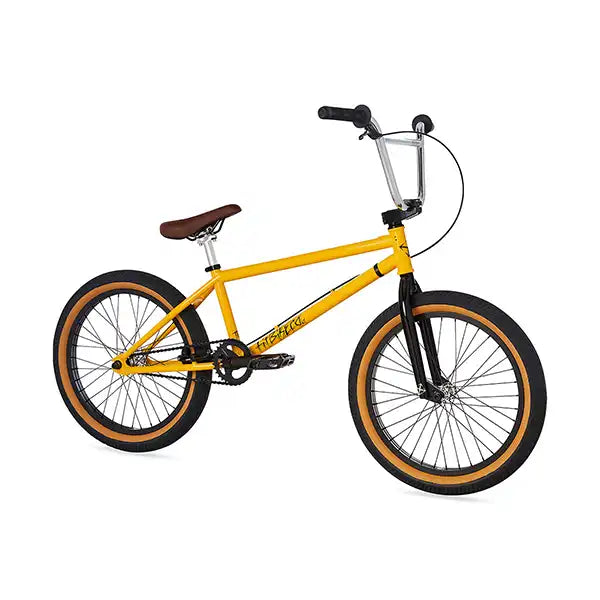

2023 Fit Bike TRL

Fitbikeco's 2023 TRL bikes start with longer 21" and 21.25" top-tube trail geometry frames with chain-stay mounted brakes. Traditional 33mm offset forks pair perfectly with the stable 74.5-degree TRL head-angle. spec'd classic 29" X 9" 11 degree back and 2 degree up 2-piece bars with FIT Long Tech flanged grips on all 4 TRL models. Other notable features on 2023 TRL's include double walled FIT OEM rear rims, female front axles, S&M Shield railed seats and 300 mm micro adjust seat posts.

Frame: 20.25” tt (small), 20.5” tt (medium), 20.75” tt (large) cro-mo top and down tubes
Geometry: series one
Headset: a-headset
Bb: sealed mid
Bars: 2-piece 8.7” x 29”
Fork: 33mm offset cr-mo steerer tube
Stem: fit top load
Grips: fit crossfit
Seat: new more padded integrated combo
Cranks: tubular cro-mo 160mm
Sprocket: fit key 25t
Pedals: fit pc
Front wheel: fit s1w w/unsealed hub
Rear wheel: fit s1w w/sealed 9t cassette
Tires: fit oem 2.4”
Brakes: new u-brake w/more tire clearance & softer pull springs
Weight: 11.79 kg
Weight: 12.29 kg
