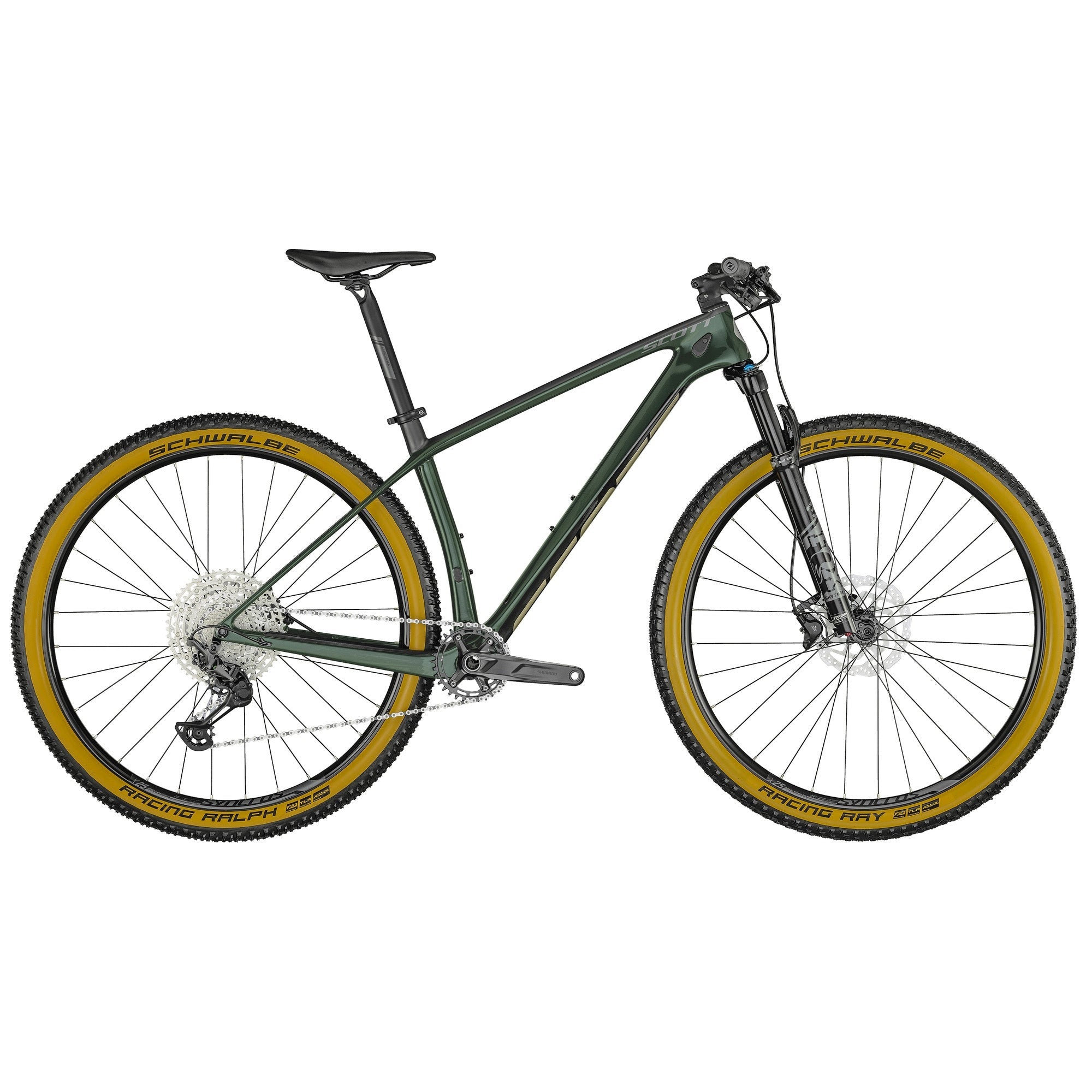

The SCOTT Scale 930 boasts a super light Carbon Fiber frame. FOX suspension, a Shimano 12-speed drivetrain and Syncros components combine to create a lightweight and efficient racing machine.
Frame: Scale 3 Carbon / IMP Technology / HMF / BB92 / SW DM dropouts for Boost 12x148mm / SDS2 advanced Shock & Standing Damping System / ICCR Cable routing
Fork: FOX 32 Float Rhythm Grip 3 / 3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer / Reb. Adj. / Lockout / 100mm travel
Remote System: SCOTT RideLoc Technology / below bar remote / 3 modes / integ. Grip clamp
Rear Derailleur: Shimano XT RD-M8100 SGS / Shadow Plus / 12 Speed
Front Derailleur: N/A
Shifters: Shimano Deore SL-M6100-R / Rapidfire Plus
Crankset: Shimano FC-MT511-1 / 32T
BB-Set: Shimano BB-MT500 / shell 41x92mm
Chain: KMC X12
Cassette: Shimano Deore CS-M6100-12 / 10-51 T
Brakes: Shimano MT401 Disc
Rotor: Shimano SM-RT10 CL / 180/F and 160/R
Handlebar: Syncros Fraser 2.0 / Alloy 6061 / T shape Flat / 9° / 740mm / Syncros Pro lock-on grips
H'Stem: Syncros FL2.0 / 6° / integrated Spacer & Top Cap / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost: Syncros Duncan 2.0 / 10mm offset / 31.6x400mm
Seat: Syncros Belcarra Regular 2.5
Headset: Syncros Pro Drop in / Tapered 1.5"-1 1/8" / Bearing diameter size 42mm and 52mm
Hub (Front): Formula CL-811 / 15x110mm
Hub (Rear): Shimano FH-MT410-B CL / Boost 12x148mm / Micro Spline
Spokes: Stainless Black 15G / 1.8mm
Rims: Syncros X-25 / 32H / 25mm / Tubeless ready
Front Tire: Schwalbe Racing Ray 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready
Rear Tire: Schwalbe Racing Ralph 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready
Pedals: N/A
Approx Weights in KG: 11.80 (with tubes)
Max. System Weight: 128 kg / The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
