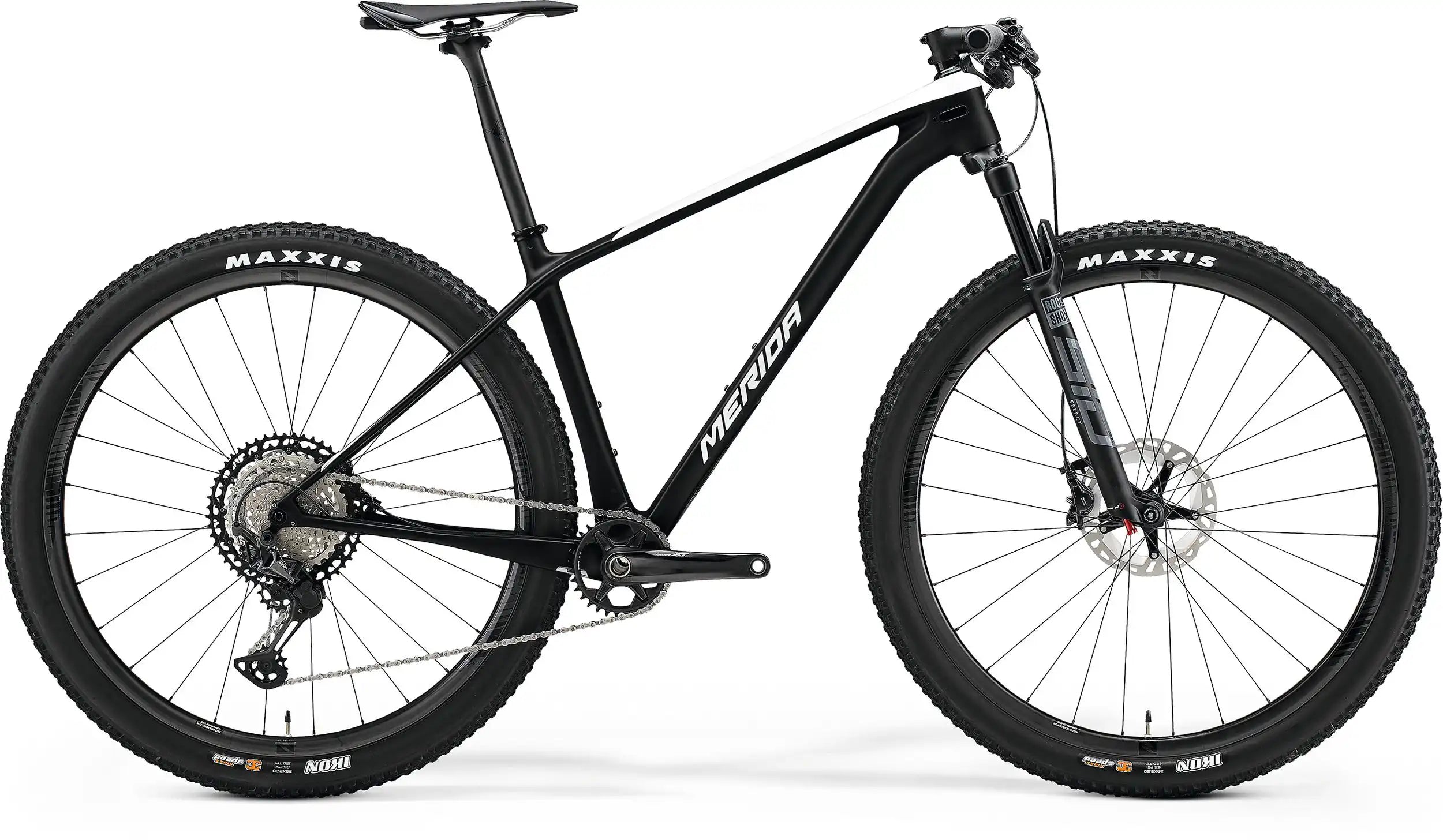

Top-level carbon hardtail, perfect for XC and marathon racing. To accompany our full carbon CF3 frame, we have chosen some of the best components, giving this bike the edge, whatever course or distance you throw at it.
Frame: BIG.NINE CF3; MAT carbon; 29x2.25" max. WHS; 148x12 AST; BB92 BBR
Sizes: S-M-L-XL
Fork: Rock Shox SID SL Select; Air; 100 STR; Tapered; Remote lockout; 42mm fork offset; 29x2.8" max. WHS
Gears: 1 x 12
Chainwheel: Shimano XT; 32 ATC
Crank Length: 170 mm-S, 175 mm-M up
Bottom Bracket: Shimano MT800-PA pressfit
Cassette: Shimano XT; 10-51 ATC; 12 GER
Chain: Shimano XT
Derailleur - Rear: Shimano XT M8100 Shadow+
Shifter - Rear: Shimano XT; Multi Release
Brakes: Shimano XT; 2 piston
Rotor - Front: Shimano RT-MT800; 180mm
Rotor - Rear: Shimano RT-MT800; 160mm
Handlebars: MERIDA EXPERT CC; MAT aluminium; 740 WHB; flat
Stem: MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; -17 ASD
Stem Length: S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm
Head Set: FSA NO.55E
Seat Post: MERIDA TEAM CC; MAT carbon; 30.9 DSP; 0 SSB; S-Flex
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Hub - Front: attached
Hub - Rear: attached
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Spokes: attached
Rims: Reynolds TR 309/289 XC; 110x15 WHF; 148x12 WHR; 30/28 IWR; Centerlock; Shimano 12 Speed; MAT carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty
Tyres: Maxxis Ikon; 29x2.2"; fold; 3C
Pedals: no
Other: MERIDA Multitool with saddlebox
Max. Rider Weight: 135kg
