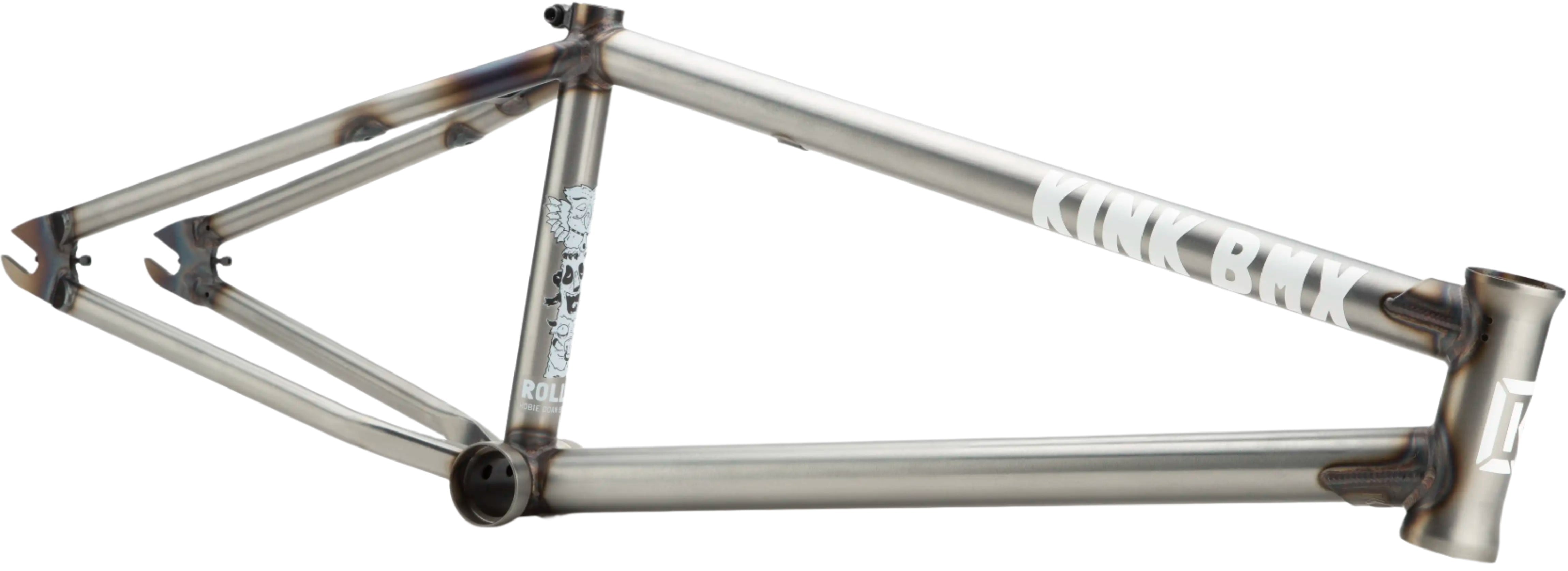

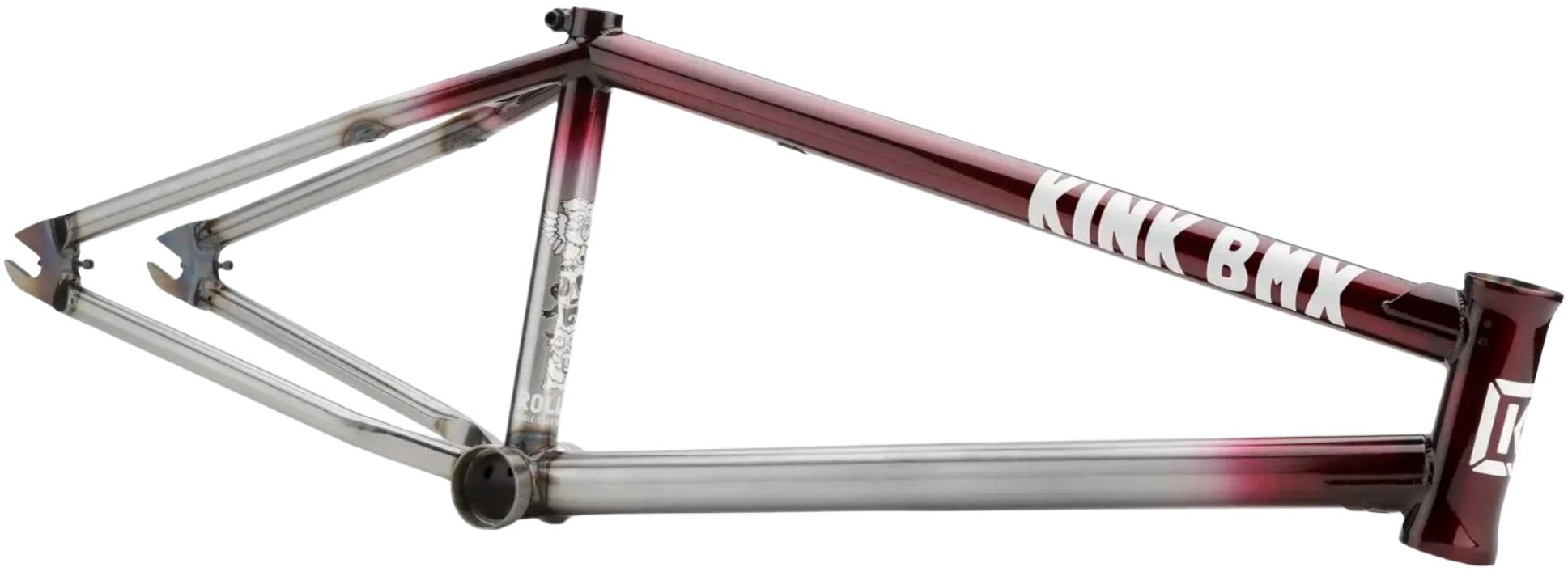

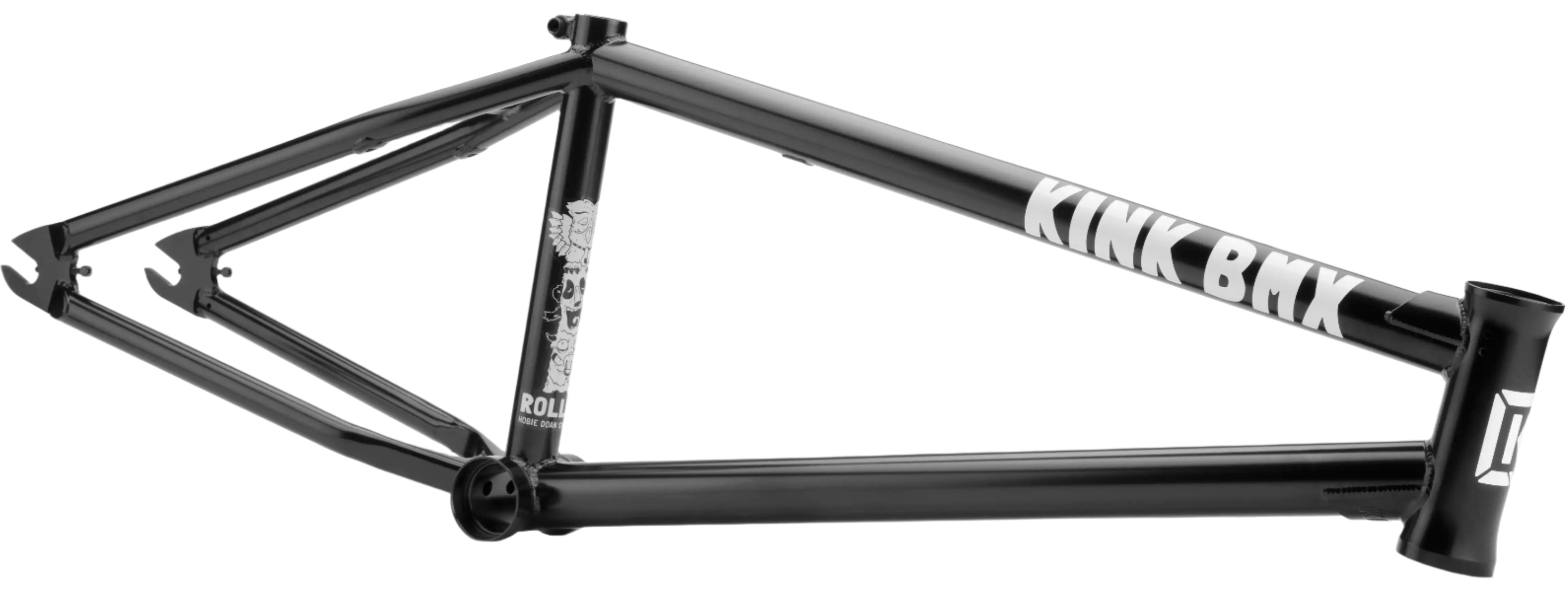

2022 Kink Roll Up Frame

We worked closely with Hobie Doan on his signature Roll Up frame to give him all the specs and features he was looking for in a super tough frame. The investment cast chainstay yoke creates a clean look, while providing extra stiffness and a ton of tire clearance. For the seatstay bridge the frame features an oversized laser cut bridge for more stiffness and a great look. Modern street geometry throughout the frame of course, with a 75-degree headtube angle and 12.75” chainstay length. The dropouts feature an all-new shape based on Hobie’s input and feature integrated chain tensioners to ensure your wheel stays in place and chain stays tight. This frame includes removable brake mount hardware and an integrated seat post clamp with a handy 5mm/6mm combo bolt.

Material: 100% 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Laser Cut with Integrated Chain Tensioners
Bottom Bracket: Internally and Externally Machined Mid Size BB
Braking: Removable Through-Bolt Brake Mount System
Particulars: Toptube and Downtube Gussets
Particulars: Integrated Chain Tensioners
Particulars: Integrated Seat Clamp with 5mm/6mm Combo Bolt
Particulars: Investment Cast Chainstay Yoke
Particulars: Oversized Super Stiff Seatstay Bridge
Weight: 5lbs (20.5")
