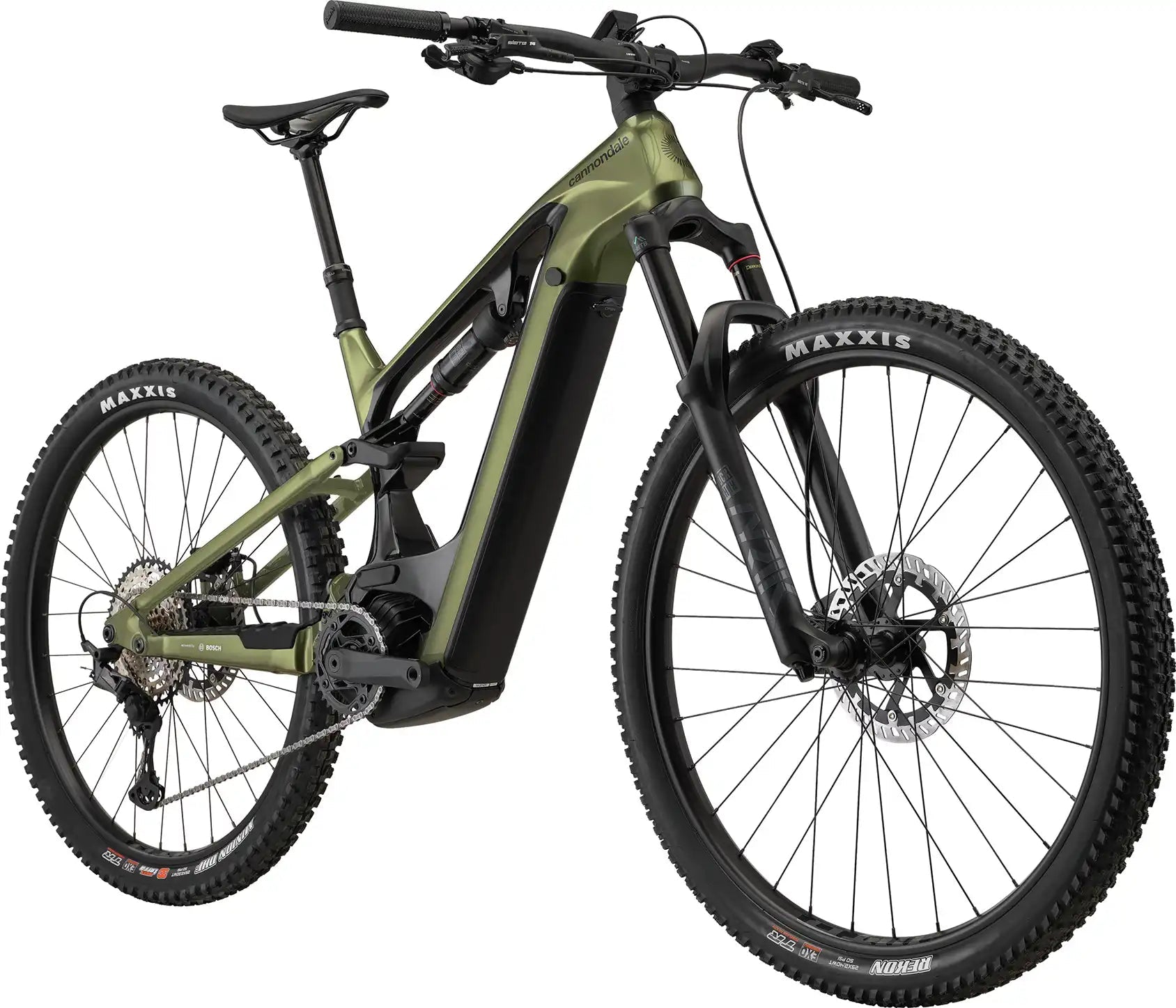

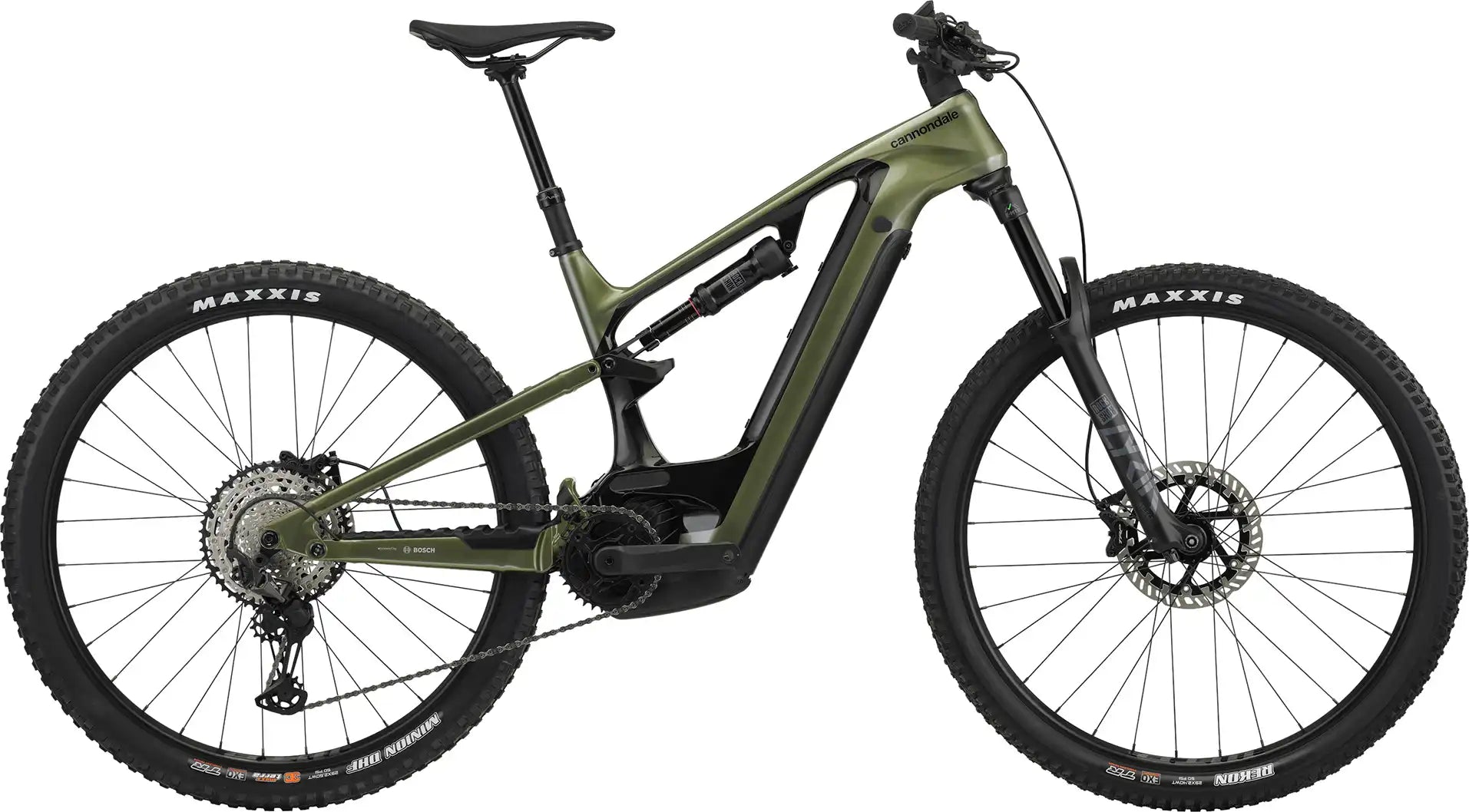

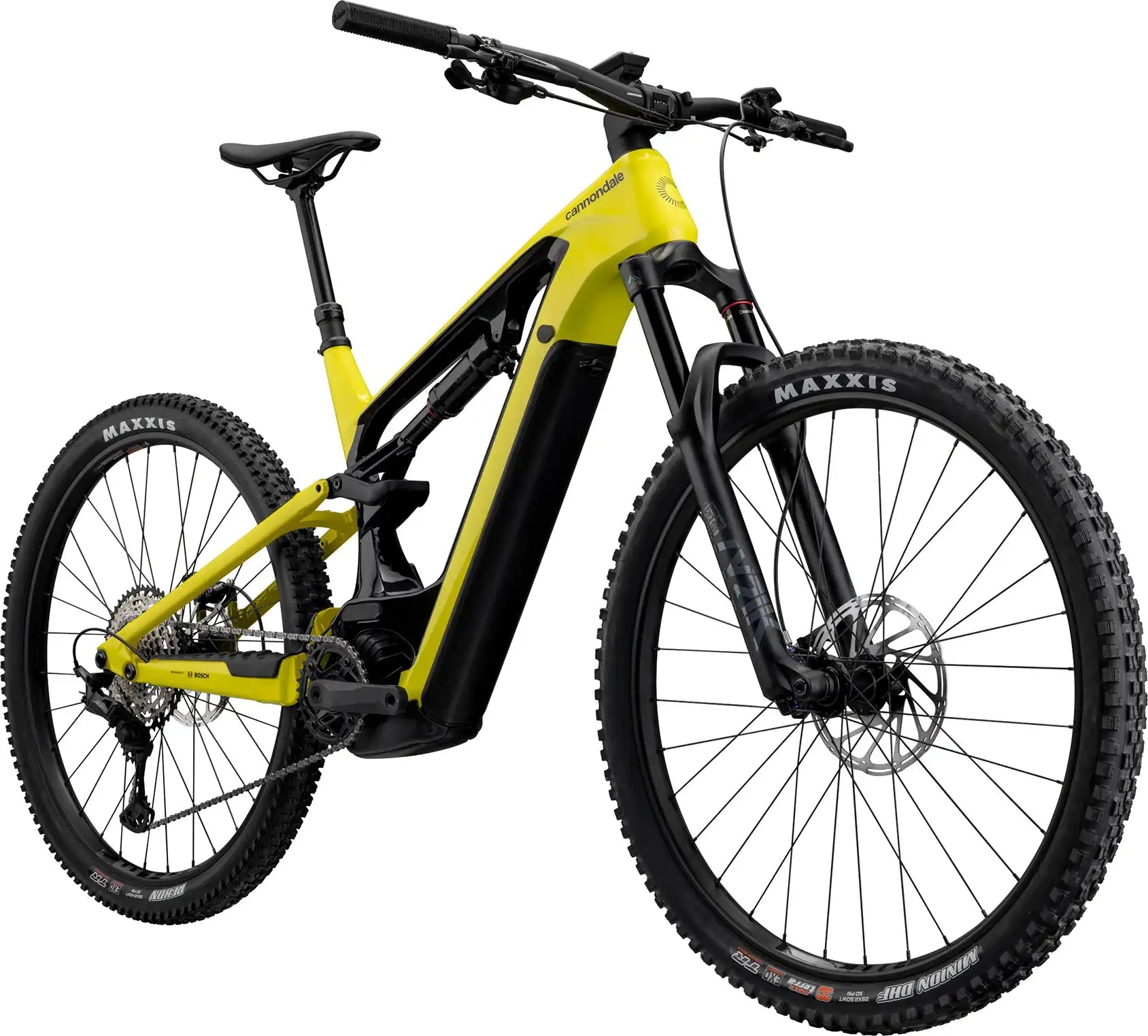

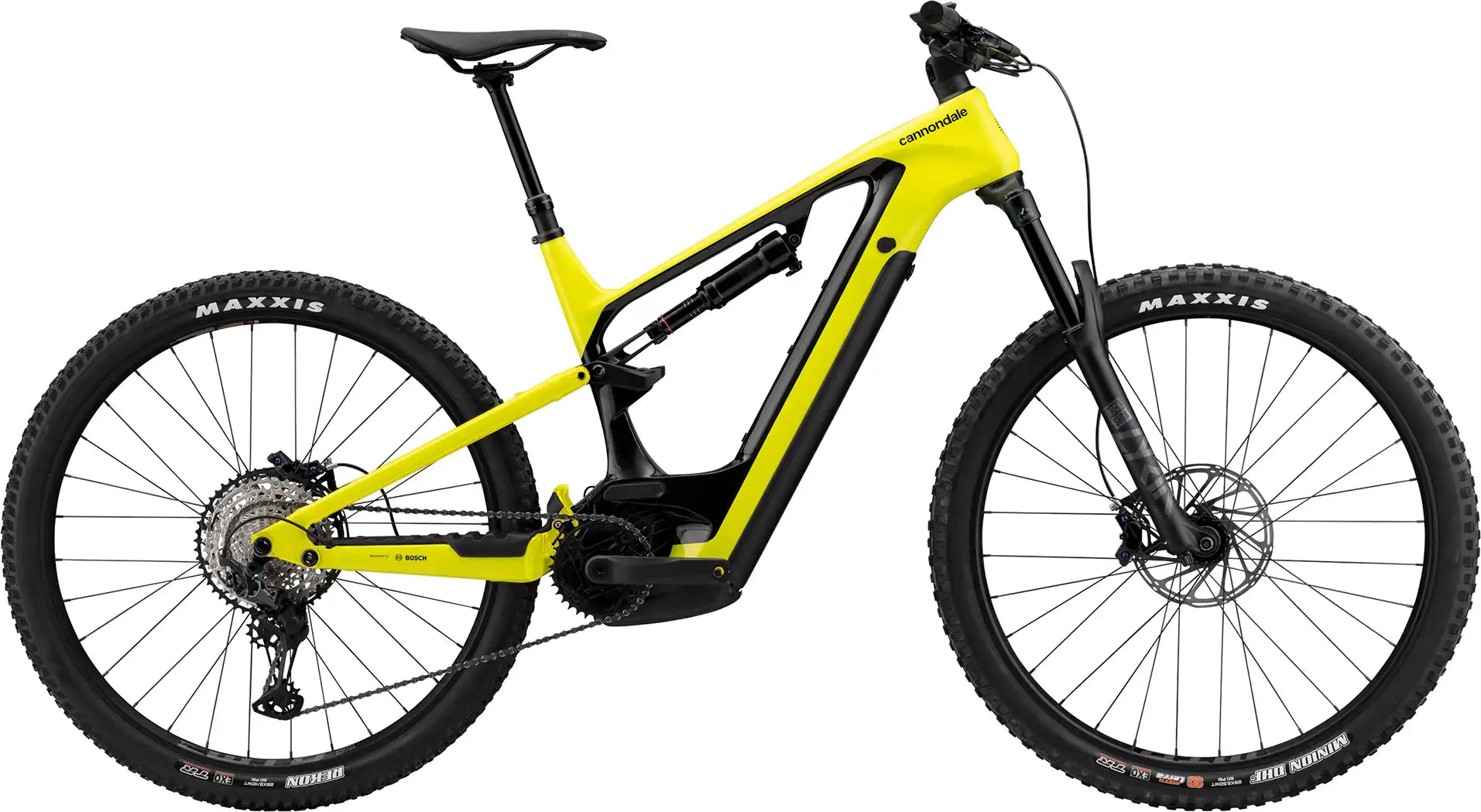

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Frame: Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Rims: WTB ST i30 TCS, 32h, tubeless ready
Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Spokes: DT Swiss Champion
Tires: (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Pedals: Not included
Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Chain: Shimano SLX, 12-speed
Rear Cogs: Shimano SLX, 10-51, 12-speed
Rear Derailleur: Shimano XT
Shifters: Shimano SLX, 12-speed
Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Grips: Fabric FunGuy
Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
Headset: Acros integrated sealed bearing, tapered
Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers: Shimano MT501 hydraulic disc
E-bike Display: Bosch Kiox 300 w/ LED remote
E-Bike Battery: Bosch PowerTube 750Wh
E-bike Charger: Bosch 4A
E-bike Drive Unit: Bosch Performance Line CX 250W
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Connectivity: Cannondale Wheel Sensor
Extra's: Preinstalled light cable
