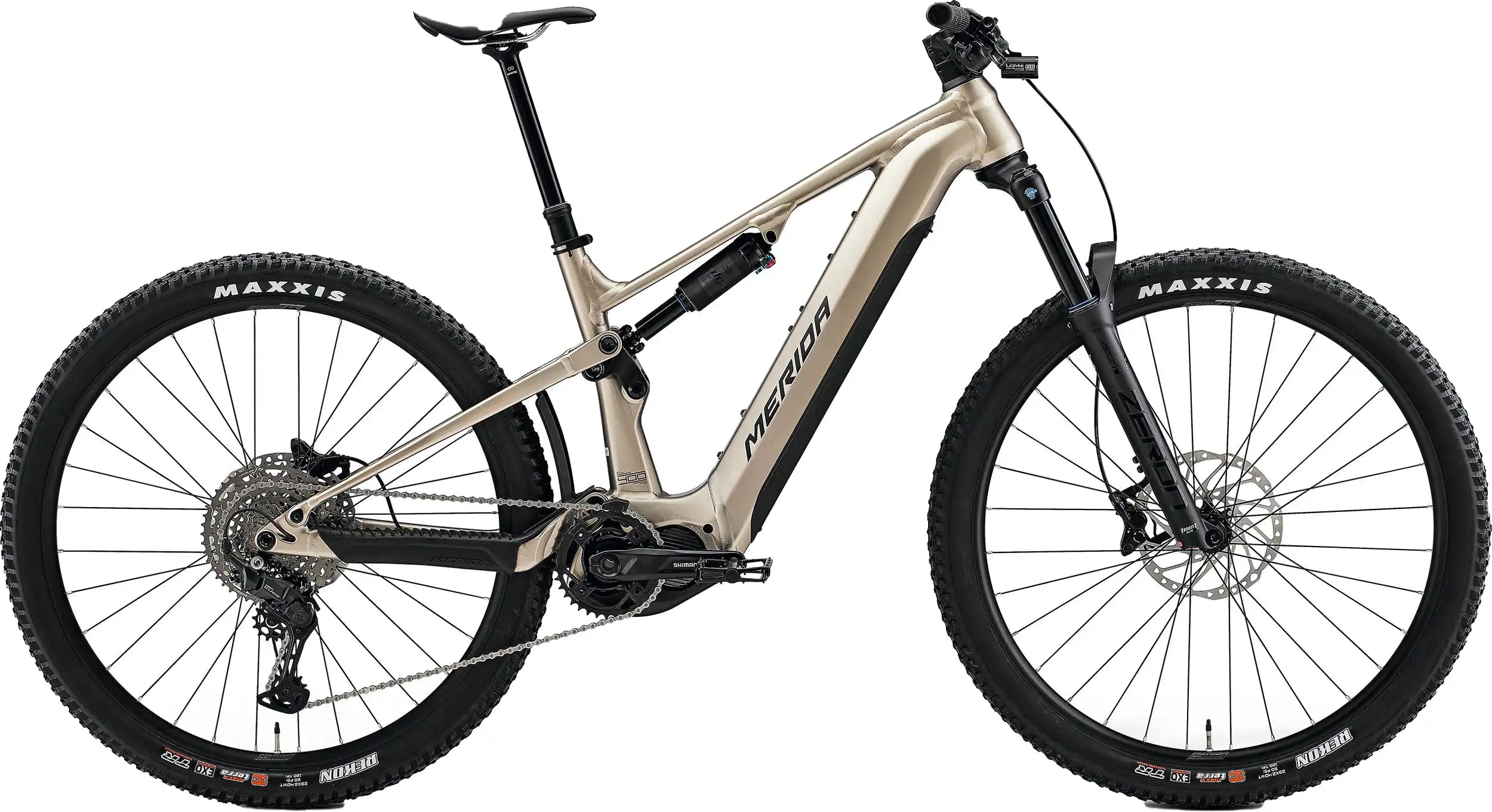

A tough, trail-capable machine for anyone who doesn't want to blow the budget. Our latest durable aluminium frame is paired with a removable 630 Wh battery and powerful drive unit to maximise riding time, thanks to quality Shimano and Suntour equipment.

Frame: eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube
Sizes: XShort - Short - Mid
Fork: SF25-ZERON36X-BOOST
Rear Shock: RS21 Edge Plus STD 2CR 230x57.5 - M9
Drive Unit: Shimano EP801; 85Nm
Battery: Shimano EN806; 630Wh Shimano; NO Range Extender compatibility
Battery Charger: Shimano EC-E6002; 2A charging current
Display: Shimano SC-EN600
Mode Switch: Shimano SW-EN600-L
Rear Derailleur: Shimano CUES U6000 ; GS
Shifters: Shimano CUES U6000 10
Dropper Post Lever: Shimano SL -MT500-IL
Brake-F: Shimano MT420; 4 piston
Brake-R: Shimano MT420; 4 piston
Rotor-F: Shimano RT64; 203 mm
Rotor-R: Shimano RTEM600; 203 mm
Chainring: FSA 1x Steel Chainring; 36 ATC
Crank: Shimano FC-EM600; 165 mm for all sizes
Chain: Shimano LG500
Cassette: Shimano LG400; 11-48 ATC; 10 GER
Pedals: VP VPE-527
Handlebar: MERIDA EXPERT eTR; 780 WHB; 20 RHB
Handlebar Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem Length: 40 mm all sizes
Headset: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Hub-F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
Hub-R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
Axle-R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Tyre-F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra
Tyre-R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra
Light Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light Rear: USB REAR Light CG-214RG
Max Rider Weight: 140kg
