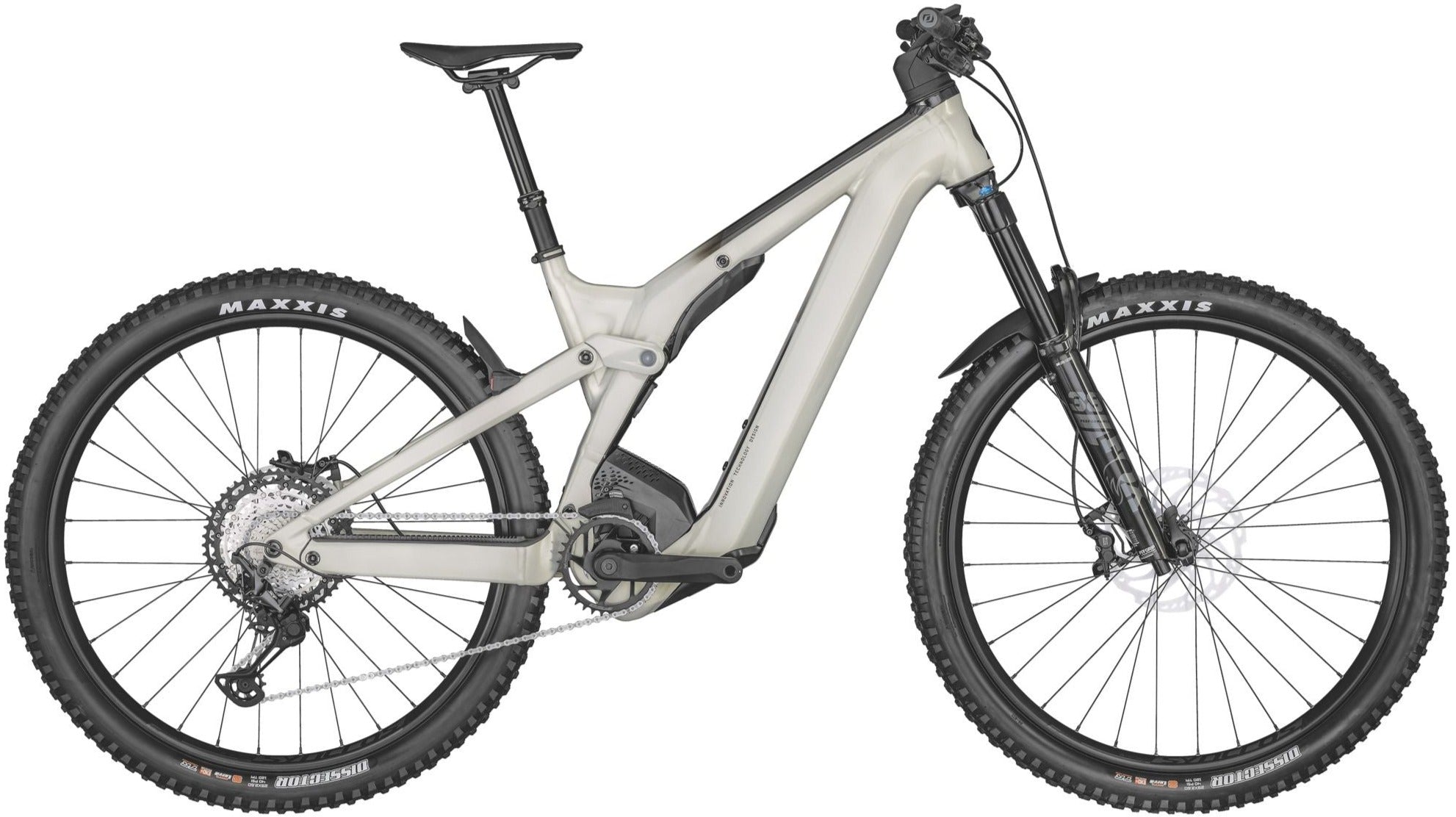

The all-new Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

Frame: Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch Gen4 / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable
Travel: Front: 160mm / Rear: 160mm
Fork: FOX 38 Perf. Air / eMTB+ / FIT4, 3-Modes with low Speed adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
Rear Shock: FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 160mm / 205x60mm
Remote System: SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 modes
Drive Unit: Bosch Performance CX, EU: 25kmh / INT: 20mph
Battery: PowerTube 750Wh
Display: Bosch LED Remote & Kiox 300
Charger: 4A Charger
Rear Derailleur: Shimano XT / 12 Speed
Shifters: Shimano SL-M8100
Crankset: FSA CK-745 165mm / 34T
Chainguide: e*thirteen / e*spec Slider
Chainring: FSA WB604 / 34T / DM / Steel
Chain: Shimano CN-M8100
Cassette: Shimano CS-M8100 / 10-51 T
Brakes: Shimano SLX / BR-M7120 4 Piston
Rotor: Front&Rear: SM-RT70 CL 203mm
Handlebar: Syncros Hixon 1.5 / Alloy 7050D.B., 12mm rise / 9° / 780mm, Syncros Pro lock-on grips
H'Stem: Syncros AM1.5 / 7050 Alloy, 31.8mm / 4° / 1 1/8"
Seatpost: Syncros Duncan Dropper Post 2.5, Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
Seatpost: Syncros Duncan Dropper Post 2.5, Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
Headset: Acros / 1.8", ZS66 OD74 / integr. Cable
Hub (Front): Formula CL-811 / 15x110mm
Hub (Rear): Formula ECT-1481 / Boost 148x12mm
Spokes: Stainless Black
Rims: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
Front Tire: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready
Rear Tire: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready
Lights: Bosch Light Cable pre-installed F&R
Extras: Syncros Trail 2 fender 36/38, Syncros eRIDE integrated light fender
Approx weight in KG: 26.1
Max. System Weight: 128 kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
